Turbomeca Marboré
Teledyne Continental J69

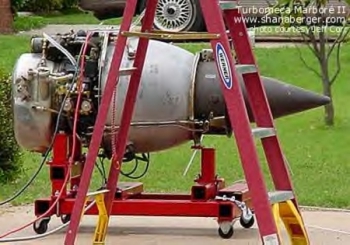

The Turbomeca Marboré I was an enlarged
version of the Palas and was first flown in 1951.
In 1951 Continental obtained a license to build the Marboré II,
designating their version the Model 352. The U.S. military designated this
engine the J69. The J69-9 produced from 660 to 880 lbs thrust.
Continental began adding transonic axial compressor stages. These improved
Model 356 engines produces up to 1,920 lbs (8.5 kN) thrust.
models
- J69-T-25: 1,025 lb (4.6 kN) thrust
- J69-T-29: 1,700 lb (7.6 kN) thrust
- Marboré II: 882 lb (3.9 kN)
- Marboré VI: 1,058 lb (4.7 kN) thrust
specifications
- Axial/Centrifugal-flow turbojet
used by
- Cessna T-37 Tweety Bird
- Fouga CM 170 Magister
- Morane-Saulnier M.S.760 Paris
- Ryan AQM-34 Firebee
|
