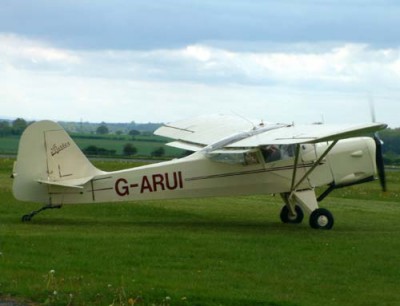

Beagle Terrier
First Flight:
13 April 1961
A.61 Terrier 1: nos. built 18
A.61 Terrier 2:
nos. built
45
A.61 Terrier 3:
nos. built 1
Type Specification
Applies to:
Beagle A.61 Terrier 2
Wing:
High wing, braced monoplane. Unswept with slight
dihedral. Metal structure
Fuselage:
Box section, metal fuselage
Tail Unit:
Cantilever tailplane at base of fin with single
fin and rudder
Landing Gear:
Tail wheel type fixed undercarriage. Single
wheel main gear. Tailwheel
Power Plant:
One 145 hp de Havilland Gipsy Major 10 Mk 1-1
inline engine in nose driving a two blade
propeller
Accommodation:
Side by side seating with third seat behind in
enclosed cabin under wing
Dimensions
Span:
36 ft 0 in
Length:
23 ft 3 in
Height:
8 ft 11 in
Wing Area:
184 sq ft
Weights
Tare:
1,600 lb
All-up:
2,400 lb
Performance
Max Speed:
120 mph
Initial Climb:
530 ft/min
Range:
320 miles
|
|
