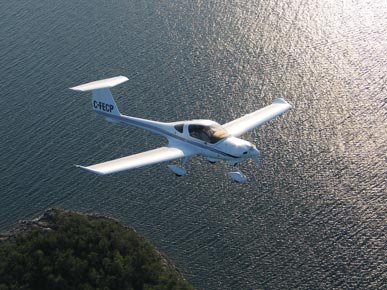

Diamond Katana DA20-A1 performance and specifications
Powerplant: Bombardier Rotax 912F3, 81
hp, four-cylinder, horizontally opposed
Recommended TBO |
1,200 hr |
Length |
23 ft 6 in |
Height |
6 ft 11 in |
Wing span |
35 ft 7 in |
Wing area |
125 sq ft |
Wing loading |
12.9lb/sq ft |
Power loading |
19.7lb/hp |
Seats |
2 |
Empty Weight, typical |
1,095 lb |
Maximum gross weight |
1,609 lb |
Fuel capacity, std |
20.1 gal (19.5 gal useable) |
Oil capacity |
3.2 qt |
Performance |
|
Take off distance, ground roll |
1,120 ft |
Takeoff distance over 50-ft obstacle |
1,560 ft |
Max demonstrated
crosswind component |
15 kt |
Rate of climb, sea level |
680 fpm |
Cruise/fuel
consumption 7,500 feet @ 75% power |
117 kt/4.3 gph |
Service ceiling |
14,000 ft |
Landing distance, over 50 ft. obstacle |
1,490 ft |
Landing distance, ground roll |
748 ft |
|
|
Limiting and Recommended Airspeeds |
|
Vx (best angle
of climb) |
57 kias |
Vy (best rate of
climb) |
65 kias |
Va (design
maneuvering) |
104 kias |
Vfe (max flap
extended) |
81 kias |
Vno (max
structural cruising) |
118 kias |
Vne (never
exceed) |
161 kias |
Vs (stall,
clean) |
41 kias |
Vs0 (stall, in
landing configuration) |
37 kias |
|
|
