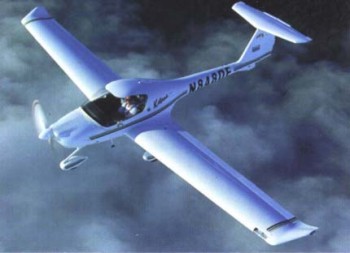

Diamond Katana 100
performance and specifications
Powerplant
Bombardier Rotax 912S, 100 hp, four-cylinder,
horizontally opposed
Recommended
TBO |
1,200 hr |
Length |
23 ft 6 in |
Height |
6 ft 11 in |
Wing span |
35 ft 7 in |
Wing area |
125 sq ft |
Wing loading |
13.2 lb/sq ft |
Power loading |
16.5 lb/hp |
Seats |
2 |
Empty Weight,
typical |
1,095 lb |
Maximum gross
weight |
1,653 lb |
Fuel capacity,
std |
20.1 gal (19.5 gal useable) |
Oil capacity |
3.2 qt |
Performance |
|
Take off
distance, ground roll |
1,025 ft |
Takeoff
distance over 50-ft obstacle |
1,425 ft |
Max
demonstrated crosswind component |
15 kt |
Rate of climb,
sea level |
700 fpm |
Cruise/fuel
consumption 7,500 feet @ 75% power |
123 ktas/6.1 gph |
Service ceiling |
17,600 ft |
Landing
distance, over 50 ft. obstacle |
1,532 ft |
Landing
distance, ground roll |
790 ft |
|
|
Limiting
and Recommended Airspeeds |
|
Vx (best angle
of climb) |
57 kias |
Vy (best rate
of climb) |
65 kias |
Va (design
maneuvering) |
104 kias |
Vfe (max flap
extended) |
81 kias |
Vno (max
structural cruising) |
118 kias |
Vne (never
exceed) |
161 kias |
Vs (stall,
clean) |
41 kias |
Vs0 (stall, in
landing configuration) |
37 kias |
|
|
