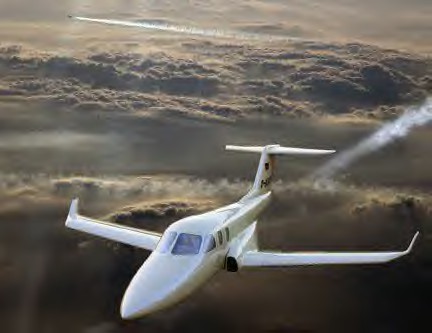

Diamond D Jet
performance and specifications
D Jet
North America |
|
European version |
Take off distance |
2,372 ft |
723 m |
2,034 ft / 620 m |
Maximum certified
altitude |
25,000 ft |
7,620 m |
|
Cabin altitude,
Press. Diff. psi
(alt) 5.2 psi |
8,000 ft |
2,438 m |
|
Maximum range IFR,
ISA (240 kts) |
1,320 nm |
2,445 km |
|
Maximum cruise |
315 kts |
583 km/h |
|
Vmo |
295 kts |
546 km/h |
|
Stall speed |
63 kts |
117 km/h |
61 kts / 112 km/h |
Rate of climb (MSL,
MTOW) |
2,600 fpm |
13.2 m/s |
|
Fuel consumption
(300 ktas) |
276 lb/h |
125 kg/h |
|
Static thrust |
1,400 lb |
6.35 kN |
|
MTOW |
4,750 lb |
2,155 kg |
4,407 lb / 1,999 kg |
Empty weight |
2,590 lb |
1,175 kh |
|
Payload |
2,162 lb |
981 kg |
1,816 lb / 824 kg |
Fuel payload (725 l
/ 189,0 US gal) |
1,280 lb |
580 kg |
|
Payload (max fuel,
single pilot) |
881 lb |
400 kg |
538 lb / 244 kg |
|
|
|
|
Wing span |
39.4 ft |
11.8 m |
|
Exterior height |
10.2 ft |
3.1 m |
|
Cabin length inboard |
11.6 ft |
3.5 m |
|
Maximum cabin width |
4.8 ft |
1.46 m |
|
Cabin height inboard |
4.8 ft |
1.46 m |
|
Regular seats (crew/pax)
(single pilot
operation) |
1+4 |
1+4 |
|
|
|
