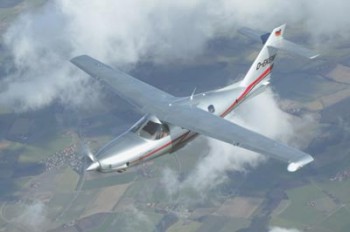

Extra 500 aircraft performance and specifications
The Extra 500 utilizes
the successful EA-400
airframe, and is powered
by the Rolls Royce 450
hp model 250-B17F/2
engine and the MT
Propeller five-bladed,
reversible composite
prop. It now includes
the APEX® fully
integrated glass
cockpit, which will be
the standard avionics
package for the
aircraft.
|
Engine |
Rolls-Royce Model
250-B17F/2 Turboprop |
|
seats
Aircraft Dimensions
(ft)
Useful Load
Fuel (usable)
Take Off Distance |
6
L32.5 x W37.9 x H11
1,610
175.9 gallons
1,150 |
Exterior
dimensions
|
Wingspan |
37 ft 10 in/ 11.5 m |
|
Length |
32 ft 6 in/ 9.9 m |
|
Height |
11 ft 0 in/ 3.4 m |
Interior
Cabin dimensions
|
Cabin Length |
13 ft 6 in/ 4.1 m |
|
Cabin Width |
4 ft 7 in/ 1.4 m |
|
Cabin Height |
4 ft 1 in/ 1.2 m |
Weights
|
MTOW |
4,696 lbs/ 2,130 kg |
|
MLW |
4,409lbs/ 2,000 kg |
|
MZFW |
4,319lbs/ 1,959 kg |
|
MEW |
3,086 lbs/ 1,400 kg |
|
MFW |
1,213 lbs/ 550 kg |
Fuel
Parameters
Main
Tank Fuel Capacity: 123.6 gallons/ 468 L
840lbs/ 381 kg
Long
Range Tank Fuel Capacity:
56 gallons/ 212 L
380 lbs/ 173 kg
Unusable
Fuel: 3.7
gallons/ 14 L
Usable
Fuel: 175.9
gallons /666 L
1195.2 lbs /542 kg
V-Speeds
|
Vmo |
219 |
|
Vno |
188 |
|
Vy |
110 |
|
Vx |
90 |
|
Cruise Climb |
120-130 |
|
Va |
133-156 |
|
Vlo |
140 |
|
Vle |
140 |
|
Vfe
15 |
120 |
|
Vfe
30 |
109 |
|
Best Glide |
105 |
|
|
