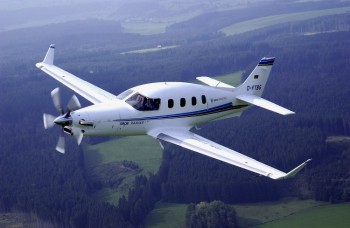

Grob Ranger G 160 performance and specifications

GROB RANGER The Business Aircraft

The cabin of the GROB RANGER G 160 is designed to be a comfortable travel environment and an efficient working area. It offers a cabin space which is comparable or larger than many small business jets.

  Four seats in club arrangement
  Folding tables
  Individual reading lights
  Lavatory
  Large baggage stowage
  On-board power supply for laptops (220V/110V)
  Bulkhead between cockpit and cabin
  Bulkhead to separate aft cabin

Cabin options:

  Refreshment centre
  One additional aft cabin seat, lavatory and a reduced baggage stowage area
  Two additional aft cabin seats instead of lavatory

Engine Type Pratt & Whitney   PT6A-42A
Power SHP 850 flat rated to 41º C
Propeller   4-blade Hartzell  with reverse
Wingspan m/ft 13.0 / 42.7
Length m/ft 11.5 / 37.7
Height m/ft 3.4 / 11.2
Wing area m2/sqft 20.5 / 220.4
Aspect ratio   8.25
Max. take-off mass kg/lb 3300 / 7275
Max. landing mass kg/lb 3300 / 7275
Max. payload kg/lb 720 / 1587
Useable fuel ltr. / USGal 1655 / 437
Max. cruise speed at 25000 ft / ISA kts / km/h TAS 270 / 500
Rate of climb  at SL / ISA, max. mass ft/min 2360
Stalling speed kcas/ km/h 61 / 113
Take off distance to 15 m / 50 ft
at SL / ISA, max. mass
m / ft

650 / 2130

Landing distance from 15 m / 50 ft
at SL / ISA, max. mass, no reverse
m / ft

650 / 2130

Range with 6 persons
at 25000 ft / ISA, 30 min. reserve
nm / Km

1800 / 3300

Max range with full tanks
at 25000 ft / ISA, 30 min. reserve
nm / Km

2200 / 4000
