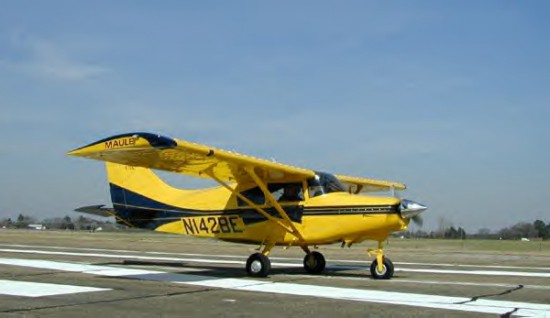

Maule MXT-7-180 Star Rocket performance and specifications
|
|
Landing Gear Configuration: |
Trigear |
|
Landing Gear Type: |
Spring Aluminium |
|
Engine Type: |
Lycoming |
|
Engine Model: |
O-360-C1F (carbureted) |
|
Propeller: |
76” Hartzell Constant Speed Prop - 2 blade |
|
No. of Seats: |
Four |
|
Useful Load: (avg.) |
972 lb. |
|
Cruising Speed: (75% power at optimum
altitude): |
145 mph |
|
Wing Span: |
32.9 feet |
|
Wing Area: |
165.6 sq. feet. |
|
Length: |
23.5 feet |
|
Height: |
8.3 feet |
|
Cabin Width: |
42 inches |
|
Gross Weight: |
2500 lbs. |
|
Empty Weight: |
1528 lbs. |
|
Fuel Capacity: |
73 gal. |
|
Stall speed (with full flaps, 1 pilot, 1/2
tank of fuel) |
40 mph |
|
Takeoff distance: (1 pilot, 1/2 tank of
fuel) |
300 feet |
|
Takeoff distance at gross over 50’ high
obstacle: |
600 feet |
|
Rate of Climb: (1 pilot, 1/2 tank of fuel) |
1200 fpm |
|
Land at gross over 50’ obstacle: |
500 feet |
|
Best Climb Speed: |
90 mph |
|
Service Ceiling: |
15,000 feet |
|
Fuel Consumption (65% power): |
9 gph |
|
Flap Settings: |
-7, 0, 24, 40 (degrees) |
|
|
|
