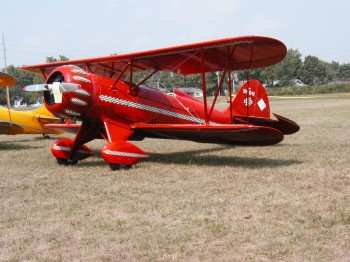

1998 Waco F-5C performance and specifications
|
|
|
|
specifications
|
|
Engine make/model:
|
Jacobs R-755-B2 |
|
Horsepower @ RPM @
altitude: |
275@2200 |
|
Horsepower for takeoff: |
275 |
|
TBO hours: |
1200 |
|
Fuel type: |
92 octane |
|
Propeller make/type: |
Sensenich fixed pitch |
|
Landing gear type: |
Float |
|
Max ramp weight (lbs): |
3218 |
|
Gross weight (lbs): |
3218 |
|
Max landing weight (lbs): |
3218 |
|
Empty weight (lbs): |
2250 |
|
Useful Load (lbs): |
968 |
|
Payload (full fuel) (lbs): |
680 |
|
Usable fuel (gals): |
48 |
|
Optional fuel (gals): |
73 |
|
Wingspan: |
30 ft. |
|
Overall length:
|
23 ft. 10 in. |
|
Height: |
8 ft. 6 in. |
|
Power loading (lbs/hp): |
11.7 |
|
Seating capacity:
|
3 |
|
Cabin width: |
46 |
|
Baggage capacity (lbs): |
75 + 200 |
|
performance
|
Cruise speed (knots):
|
|
Altitude |
Speed |
|
75% power: |
7000 |
92 |
|
Max range (with
reserve) (nm): |
|
75% power: |
200 |
|
|
Fuel consumption (gph):
|
|
75% power: |
15 |
|
|
Estimated endurance
(65% power w/1 hr reserve)
(hrs) |
3.2 |
|
Stall speed (flaps up)
(knots): |
52 |
|
Best rate of climb (fpm): |
600 (est) |
|
Service ceiling (ft.) |
N/A |
|
Takeoff water run (ft): |
2000 (est) |
|
Landing water run (ft): |
800 (est) |
|
