Aerospatiale-Socata TB-10 Tobago
Basic
training
VFR and IFR training
Travels
Liaisons
Overview
Whether
travelling for business or leisure, the Socata TB 10
Tabago GT is clearly the single-engine, fixed-gear
aircraft that best combines the pleasure of flying
with top safety.
It is powered by a four-cylinder, 180-HP Textron
Lycoming 0-360-A1 AD, the most commonly used engine of
this type in the world. Fitted with a Hartzell
constant speed propeller, it delivers maximum
performance during all phases, effectively combining
moderate fuel consumption and high cruise speed.
|
Configuration
|
|
|
|
Single engine
|
|
Low-wing monoplane with semi-monocoque metal
construction
|
|
Certified to FAR 23, parts 1 to 16
|
|
Seats : 2 forward, 2 to 3 aft
|
|
|
|
Power Plant
|
|
|
Manufacturer :
|
Lycoming
|
|
Type :
|
O-360-A 1 AD 4 cylinders
|
|
Power rating :
|
180 HP at 2,700 tr/mn
|
|
Recommended TBO :
|
2,000 h
|
|
|
|
Propeller
|
|
|
|
Manufacturer :
|
Hartzell |
|
|
Diameter : |
74 in |
1,88 m |
|
Type : |
Bipale Constant Speed
|
|
|
|
Fuel
|
|
|
|
Fuel type :
|
100 LL
|
|
|
Total tank capacity :
|
55,4 US gal
|
210 l
|
|
Usable fuel capacity :
|
53,8 US gal
|
204 l
|
|
|
|
Oil
|
|
|
|
Total oil capacity :
|
8,45 US quarts
|
8 l
|
|
|
|
Weights
|
|
|
|
Operating empty weight :
|
1,609 lbs
|
730 kg
|
|
Max. take off weight (MTOW) :
|
2,535 lbs
|
1,150 kg
|
|
Max. landing weigh :
|
2,535 lbs
|
1,150 kg
|
|
Max. useful load :
|
992 lbs
|
420 kg
|
|
Max. luggage weight in storage :
|
143 lbs
|
65 kg
|
|
Wing loading :
|
19.8 lb/sq.ft
|
96.6 kg/m2
|
|
|
|
Performances
ISA conditions at max.
takeoff weight
|
|
|
|
Rate of climb (sea level) :
|
787 ft/min
|
|
|
Climb to 8,500 ft :
|
16 min
|
|
|
Max. cruis. speed 6,000 ft at 75% :
|
127 KTAS
|
235 km/h
|
|
Best eco.cruis.spd 6,000 ft at 65% :
|
109 KTAS
|
204 km/h
|
|
Demonstrated crosswind :
|
25 kt
|
|
|
Certified ceiling :
|
13,000 ft
|
|
|
|
|
Distances (ISA - 3.086 Ibs (1,400
kg))
|
|
|
|
Take-off :
|
1,657 ft
|
505 m
|
|
Landing :
|
1,509 ft
|
460 m
|
|
Maximum range (without limit) :
|
697 Nm
|
1,291 km
|
|
|

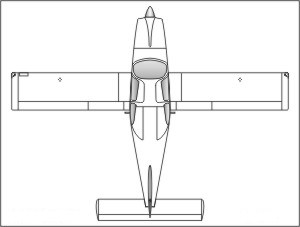

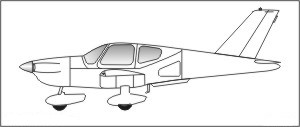

Dimensions
|
|
|
Wing span :
|
32.87 ft
|
10,04 m
|
|
Length :
|
25 ft 5 in
|
7.75 m
|
|
Height :
|
9.91 ft
|
3.02 m
|
|
Cabin length :
|
8.30 ft
|
2,53 m
|
|
Cabin width :
|
4.20 ft
|
1.28 m
|
|
Cabin height :
|
3.94 ft
|
1.20 m
|
|
Wheel track :
|
131.81 sq ft
|
12.25 m2
|
|
|
|
