Aerospatiale-Socata TB-21 Trinidad turbo
Advanced
Training IFR Training Surveillance Travel High-speed long distance liaison
The Socata
Trinidad GT is the perfect single-engine plane for
long trips. It carries enough fuel for nearly five
hours of flight, and offers a maximum range in total
security.
The TB 21 GT's turbocharger means high altitudes to
conserve fuel. At flight levels where winds are more
favourable, you can cruise at higher speed and over
bad weather.
The Socata Trinidad GT also offers a generous baggage
compartment, accessible from the cabin and holds 143
lbs (65 Kg). Removing the rear bench converts the
Trinidad into a cargo version, with payload capacity
of 55 lbs (250 Kg).
|
Configuration
|
|
Single Engine
|
Low-wing monoplane with semi-monocoque metal
construction
|
Certified to FAR 23, amendments 1 to 16 for
VFR or IFR operations
subject to equipment
|
Additional Benefits to include
Single wing spar
Tilt out panel for easy access to avionics
Triple anti-corrosion protection

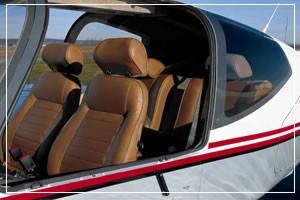

Seats : 2 forward, bench for 2 or 3 aft
|
|
Powerplant
|
|
Manufacturer :
|
Lycoming
|
Type :
|
TIO-540-AB1AD Turbocharged
|
Power Rating :
|
250 HP at 2,575 RPM
|
Recommended TBO :
|
2,000 hours
|
|
Manufacturer :
|
Hartzell
|
|
Diameter :
|
80 in
|
2.03 m
|
Type :
|
Constant speed
|
|
Blades :
|
2
|
|
|
Fuel
|
|
Fuel type :
|
100 LL
|
|
Total tank capacity :
|
88.8 US gal
|
336 l
|
Usable fuel capacity :
|
86.2 US gal
|
326 l
|
|
Total oil capacity :
|
13.3 US quarts
|
12,6 l
|
|
Weights
|
|
Operating empty weight :
|
2,011 lbs
|
911 kg
|
Max. take off weight (MTOW) :
|
3,080 lbs
|
1,400 kg
|
Max. landing weight :
|
3,080 lbs
|
1,400 kg
|
Max. useful load :
|
1,226 lbs
|
556 kg
|
Max. luggage capacity in storage :
|
143 lbs
|
65 kg
|
Max. wing loading :
|
24 lbs/sq.ft
|
117.6 kg/m2
|
|
Rate of climb (sea level - max weight) :
|
1,126 ft/mn
|
|
Max. cruis. speed 25,000 ft at 75% :
|
190 KTAS
|
|
Best eco.cruis.spd 25,000 ft at 65% :
|
169 KTAS
|
|
Demonstrated crosswind :
|
25 kt
|
|
Maximum range :
|
1,000 Nm |
|
Certified ceiling :
|
25,000 ft
|
|
|
Wing span :
|
32.71 ft
|
9.97 m
|
Length :
|
25.43 ft
|
7.75 m
|
Height :
|
9.35 ft
|
2,85 m
|
Wing area :
|
128.1 sq.ft
|
11.9 m2
|
Dihedral :
|
6°30
|
|
Wing airfoil :
|
RA16 C3
|
|
Cabin length :
|
8.30 ft
|
2,53 m
|
Cabin width :
|
4.20 ft
|
1.28 m
|
Cabin height :
|
3.94 ft
|
1.20 m
|
Wheel track :
|
7.12 ft
|
2,17 m
|
|
|
