Fairchild Aviation Corporation history, performance and specifications

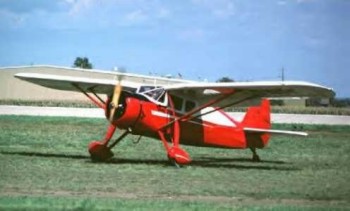

Fairchild 24J

Sherman M. Fairchild was born in Oneonta, New York, in 1895. The only child of a congressman and a founder of International Business Machines (IBM), he attended college at Harvard, the University of Arizona, and Columbia, studying engineering and aerial photography. He graduated from none of these schools, however, because of poor health and his desire to go into business.

In 1917 Fairchild was rejected from the military because of poor health. Determined to help with the war effort, he and his father went to Washington to see if his experience with cameras might be useful. At the time, the military had aerial cameras that produced poor quality images because the shutter speed could not keep pace with the motion of the airplane. Fairchild developed a camera where the shutter was inside the lens and which produced much clearer images.

Although the Army did not accept his camera until the war had ended, it bought two for training. Fairchild started the Fairchild Aerial Camera Corporation in February 1920 to build his aerial cameras. Soon the Army ordered 20 more and made them its standard aerial camera. Fairchild began using his cameras for mapmaking and aerial surveying and established another company—Fairchild Aerial Surveys—which remained in business until 1965.

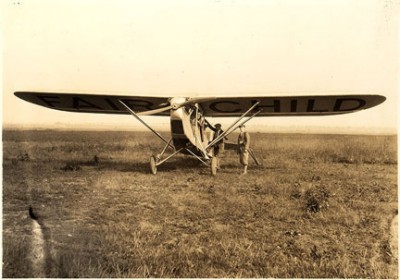

The FC-1, Fairchild's first airplane.

He quickly realized that existing planes were unsuitable for accurate aerial photography and decided to manufacture his own. In 1925, he formed Fairchild Aviation Corporation to develop a plane specifically for mapping flights. His first plane was the FC-1, a high-wing monoplane with a heated enclosed cockpit to protect the pilot and equipment. The plane provided a steady platform, featured folding wings, and used slots and ailerons for stability. The production version, the FC-2, available in 1927, was similar but could hold five passengers and was available with float or ski landing gear in place of standard wheeled landing gear. It was one of the first airplanes flown by Pan American-Grace Airways in South America. The plane made the first scheduled passenger flight in Peru, from Lima to Talara, on September 13, 1928.

Fairchild also acquired the Caminez Engine Company in 1925 as Fairchild Engine Company, which became the Ranger Engine Division in the early 1930s. Its most successful engine was the L-440 six-cylinder series, which powered more than 6,500 aircraft during World War II.

In 1927, he incorporated Fairchild Aviation as a holding company. One unit was the Fairchild Airplane Manufacturing Corporation of Farmingdale, New York. Another, acquired in 1928, was the Kreidner-Reisner Aircraft Company of Hagerstown, Maryland. In 1929, Fairchild also provided funds for and organized the Aviation Corporation (AVCO), a new holding company that would become one of the largest of its time.

In the late 1920s, Fairchild built the open-cockpit C-7 monoplane. The C-8, also known as the Model 24, followed in 1930. Similar to the C-7 but with an enclosed cockpit, some versions of this successful monoplane included optional twin-float seaplane landing gear. Fairchild also built the equivalent Model 71 in Canada from 1930, which evolved into the Super 71 in 1936 that could hold a ton of freight or eight passengers.

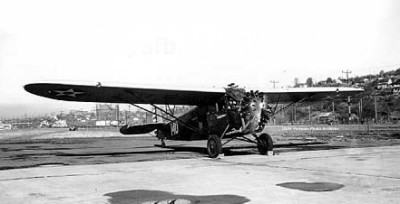

The XC-8 was the first in the new series of light transport aircraft in the early 1930s.


The M-62 trainer debuted in 1939. This rugged monoplane was produced during World War II under the PT-19 and PT-26 Cornell designations—one with an open and one with an enclosed cockpit. A total of 7,742 Cornells were manufactured for the U.S. military. Additional Cornells went to Canada, Norway, Brazil, Ecuador, and Chile.

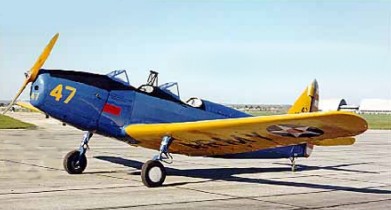

The PT-19 was developed by Fairchild in 1938 to satisfy a military requirement for a rugged monoplane primary trainer.

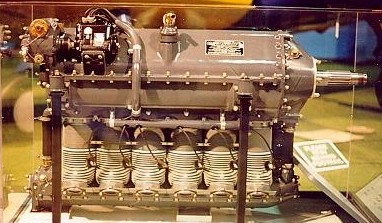

The L-440 air-cooled, six-cylinder, inverted, in-line engine was manufactured by the Ranger Aircraft Engine Division of Fairchild Engine and Airplane Corp. They were used to power more than 6,000 Fairchild trainers during World War II.

In 1939, Fairchild became interested in a process developed by Col. G.A. Clark for building airframes using a composite made of hot layers of plywood soaked with resin adhesive and bonded under pressure. Called the Clark Duramold process, Fairchild bought the process, as well as Clark's company, and renamed the process Fairchild Duramold. Fairchild used it on the wartime AT-21 Gunner trainer.

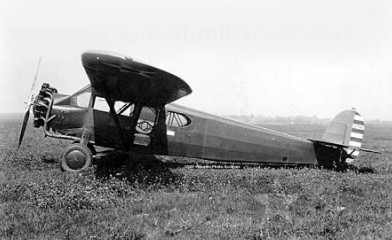

The Fairchild C-8s were used primarily as light staff transports and for mapping air routes within North America. They were used throughout the 1930s and into the early 1940s.

Fairchild took on the task in 1941 of producing military transports designed specifically for that purpose rather than by converting a civilian model to military purposes, as was customary. The large capacity twin-boom plane, called the C-82 Packet, had a hinged rear door for loading bulky cargo, and 223 were delivered from late 1945 until September 1948. Several flew assembled vehicles into Berlin during the airlift.

One reason that Fairchild was among the few aircraft firms to remain profitable after the war was the success of its C-119 Flying Boxcar, an improved Packet with more powerful engines and greater capacity. Deliveries of Boxcars began in December 1949. When production ended in 1955, more than 1,100 C-119s had been built for the U.S. military, Canada, Belgium, Italy, India, and other countries. It would, though, turn out to be the last Fairchild design to enter mass production. A C-119 was specially modified for midair retrieval of orbiting space capsules reentering the Earth's atmosphere. On August 19, 1960, one made the first midair recovery of a space capsule when it "snagged" the parachute lowering the Discoverer XIV satellite to Earth. In the 1960s, the plane was converted to a night attack gunship, the AC-119, for use in Vietnam.

In the early 1950s, Fairchild began to manufacture the C-123 Provider, a Chase Aircraft Company design that was transferred to Fairchild. More than 300 of this short-range assault transport were built up to 1958. They were used for a variety of purposes including spraying defoliants in Vietnam and controlling mosquitoes for the U.S. Department of Agriculture.

Fairchild purchased the license to manufacture the Fokker F-27 Friendship passenger airplane in 1956, building approximately 200 of six versions as well as its own stretched FH-227 version, which first flew in 1966. The F-27 became the first American-built jet airliner in service and, along with the FH-227, became widely used as "feeder" planes for commercial carriers both in the United States and abroad. The F-27, however, lost a total of $29 million for the company from 1958 to 1960.

In the mid-1950s, Fairchild began to diversify. Fairchild helped create Fairchild Semiconductor in 1957, a spinoff of Shockley Semiconductors by a group of unhappy Shockley employees. Fairchild Semiconductor disappeared in 1987 when it was absorbed by National Semiconductor. It separated from National Semiconductor in 1997 and has since grown to a business with almost $2 billion in revenue in 2000.

In 1961, Fairchild was renamed Fairchild-Stratos Corporation. It built meteoroid detection satellites for the National Aeronautics and Space Administration (NASA) and cameras for the Apollo missions.

In 1964, the company acquired Hiller Helicopters, becoming Fairchild Hiller. In 1966, it introduced the FH-1100 civilian helicopter and the Pilatus Porter turboprop short takeoff and landing (STOL) utility aircraft, which sold primarily as the AU-23 Peacemaker military helicopter. Production of the FH-1100 ended in January 1973, and Fairchild sold Hiller back to its founder Stanley Hiller soon after.

Fairchild acquired Republic Aviation, a major producer of combat aircraft, in September 1964. Republic became the Republic Aviation Division of Fairchild Hiller. Fairchild also created a Space and Electronic Systems Division in 1965, and began producing spacecraft and subsystems. It also produced parts for the F-4 Phantom and the Boeing 747 jumbo jet.

After the death of Sherman Fairchild in 1971, Fairchild Hiller became Fairchild Industries, Inc. The Republic Aviation Division became Fairchild Republic in 1973 and went on to build more than 700 A-10s Thunderbolt IIs between 1975 and 1984. Equipped with the most powerful gun ever fitted into an aircraft, the A-10 can "kill" all known armoured vehicles. Its pilot sits in a cockpit well forward from the wing to make ejection easier if needed, and the plane is designed to operate from unprepared takeoff and landing areas. Still in use, its first use in combat came in January 1991 with the start of Operation Desert Storm.

Another acquisition was Swearingen in 1971, a maker of light executive and commercial transports. The successful Metro II, based on a Swearingen design, along with the A-10, kept Fairchild active in the aircraft market through the 1970s.

In 1981, Fairchild began a partnership with the Swedish firm SAAB-Scania to develop and produce the SAAB 340 airliner, a plane accommodating about twice as many passengers as the Metro. Fairchild also won the contract for the T-46 trainer. But both programs encountered problems and late in 1985, company president Emanual Fthenakis announced that Fairchild would withdraw from civil aircraft production. In 1986, Fairchild sold its rights to the Metro. The T-46 was also cancelled. The official end of the T-46 program in March 1987 marked the end of over 60 years of Fairchild aircraft manufacturing. Late in 1987, Fairchild dismissed its remaining 3,500 employees at Farmingdale and closed the plant.

The company still retained space, electronics, and subcontracting work. A metals firm, Banner Industries of Ohio, acquired it in August 1989. The new company, a diversified firm with only a slight connection to the aerospace industry, was renamed Fairchild Corporation. In 1994, Orbital Sciences Corporation purchased Fairchild Space and Defence Corporation from Matra, a French aerospace company. Orbital sold Fairchild's Defence Unit to the British company, Smiths Industries, in 2000.

Fairchild, San Antonio (USA)
aircraft manufacturer

Sherman Mills Fairchild got his start in the aviation industry by designing his own aerial cameras.  In 1925, Huff-Daland failed to honour a contract with Sherman Fairchild acting as an independent aircraft salesman prompting the creation of Fairchild Aircraft Manufacturing Corp. in 1926.  The U.S. Army's first dedicated photo- reconnaissance aircraft, the F-1 of 1929, was a Fairchild product.

History

1925: Fairchild hires Harold Caminez and forms Fairchild-Caminez to develop the Caminez 447 engine.

1926: Sherman Fairchild forms Fairchild Aviation Corp.

1929: Fairchild takes over Kreider-Reisner which operates as an separate unit until 1936.  Fairchild-Caminez becomes the Fairchild Engine Corporation.

1936: Fairchild forms the Ranger Engine Division.

1964: Fairchild acquires Hiller Helicopters forming Fairchild Hiller.

1965: Fairchild acquires Republic Aviation forming the Republic Division of Fairchild Hiller.

1966: The parent company changes its name to Fairchild Industries.

1972: Fairchild acquires 90% of Swearingen Aviation, the maker of Metro airliners.

1987: Production costs and schedule problems with Fairchild's last aircraft, the T-46, leads to the announcement that Fairchild Industries is leaving the aircraft business.

1989: Fairchild Industries is acquired by Banner Industries which changes its name to The Fairchild Corporation.  The Fairchild Corporation currently focuses on industrial products.

1991: The Fairchild Corp sells it's Metro plant in San Antonio, Texas.  The new owners take the name Fairchild Aircraft (later Fairchild Aerospace).

1996: Fairchild Aerospace acquires Dornier to form Fairchild Dornier.

2002: Fairchild Dornier files bankruptcy.  The court appointed administrator determines that the company will have to be sold in pieces.
