Miles M 38 Messenger & M48 performance and specifications

At the private request of certain army officers in June 1942, George Miles designed and built the prototype of an air observation post (AOP) aircraft. It was required to carry a crew of two, radio, armour protection and other military equipment, and to be able to operate out of and into small tree-surrounded fields in all weathers.

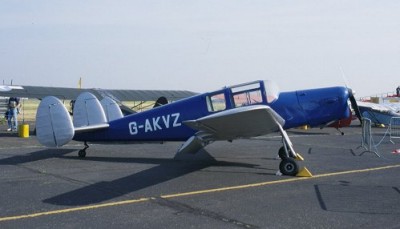

The resulting Miles M.38 prototype (U-0223) was a cantilever low-wing monoplane with fixed tailwheel landing gear, powered by a 140 hp de Havilland Gipsy Major inline engine. The wing incorporated fixed aerofoil trailing-edge flaps and when flown on 12th September 1942 it was found that these provided the requisite STOL performance. Great enthusiasm for its capability was shown by an AOP squadron which Miles allowed to flight test the aircraft, but shocked by the design, construction and testing of a military aeroplane without its knowledge, the Ministry of Aircraft Production refused to order this prototype into production for the AOP role.

In late 1943 a small order was placed for the aircraft for use in a VIP transport role under the designation M.38 Messenger and eventually a total of 21 was built. Among VIP operators allocated personal Messengers were Field Marshal Sir Bernard Montgomery and Marshal of the RAF Lord Tedder. An additional 71 were built post-war for civil use, bringing total production to 92. One aircraft was modified in 1944 by introducing conventional trailing-edge flaps and installing a 150 hp  Blackburn Cirrus Major engine. When tested this machine, designated M48 Messenger 3, was found to offer so little improvement in performance over the standard M.38 that no production followed. In its role as a VIP transport the 36 ft 2 in span Messenger had a maximum speed of 116 mph and range of 260 miles.


Design Company:

Phillips & Powis Aircraft Ltd

First Flight:

12 September 1942

Messenger I:

11 - Miles Aircraft Ltd, Woodley
10 - Miles Aircraft Ltd, Newtownards

Messenger 2:

67 - Miles Aircraft Ltd, Newtownards

Messenger 3:

1 - Miles Aircraft Ltd, Newtownards

Messenger 4:

4 - Miles Aircraft Ltd, Newtownards
19 - Converted from Messenger I

Type Specification

Applies to:

Miles M.38 Messenger I

Type:

VIP communications aircraft to specification 17/43 after design as AOP aircraft

Wing:

Low wing cantilever monoplane of spruce structure covered in plywood. Flaps fitted as standard

Fuselage:

Fuselage of spruce structure with plywood covering

Tail Unit:

Cantilever tailplane with elevator at top of fuselage with three fins and rudders. Outer fins are on ends of tailplane

Landing Gear:

Single wheel on each main leg. Tailwheel

Power Plant:

One 140 hp de Havilland Gipsy Major engine in nose

Accommodation:

Seating for up to four in enclosed cabin above the wing

Dimensions

Span:

36 ft 2 in

Length:

24 ft

Height:

9 ft 6 in

Wing Area:

191 sq ft

Weights

Empty:

1,518 lb

All-up:

1,900 lb

Performance

Max Speed:

116 mph

Rate of Climb:

660 ft/min

Service Ceiling:

14,000 ft

Range:

260 miles
