Rearwin Speedster Aircraft history performance and specifications
Two copies of the Cirrus powered version were built.

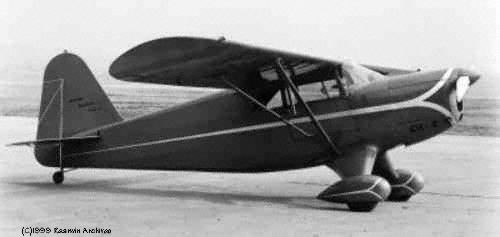

Rearwin "Speedster" 6000-M
The Menasco powered version saw 6 ( 10 ) copies being produced in the late
1930's.
The prototype Speedster ( initially ) failed the government spin (
recovery ) test. Perhaps resulting in its large vertical tail.
All in all, a pretty airplane that deserved a better fate.
Speedster |
Specifications |
6000C
|
6000M
|
Aircraft Type Certificate |
637 |
|
Engine |
Inline Inverted Cirrus
|
Inline Inverted Menasco
|
Horsepower |
95
|
125
|
Wing Span |
32 ft
|
32 ft
|
Length |
22 ft 2 in
|
22 ft 2 in
|
Height |
6 ft 8 in
|
6 ft 8 in
|
Wing Area |
145 sq ft
|
145 sq ft
|
Power Loading |
17.4 lbs/hp
|
13.4 lbs/hp
|
Wing Loading |
11.5 lbs/sq ft
|
11.5 lbs/sq ft
|
Empty Weight |
1052 lbs
|
1052 lbs
|
Useful Load |
616 lbs
|
616 lbs
|
Payload |
220 lbs
|
220 lbs
|
Gross Weight |
1668 lbs
|
1668 lbs
|
Fuel Capacity |
34 gal
|
34 gal
|
Oil Capacity |
2.5 gal
|
2.5 gal
|
Maximum Speed |
144 mph
|
166 mph
|
Cruising Speed |
120 mph
|
140 mph
|
Landing Speed |
46 mph
|
46 mph
|
Cruising Range |
600 miles
|
600 miles
|
Rate of Climb |
600 ft/min
|
750 ft/min
|
Standard Equipment |
Airspeed Indicator,
Compass, Altimeter, Tachometer, Oil Pressure Gauge, Oil Temperature
Gauge, Switch, Two Fuel Gauges, Dual Controls, Brakes, Fire
Extinguisher, Tail Wheel, First Aid Kit, Cabin Door Lock -- Yale
Type, Upholstered Cabin, Luggage Compartment (50 lbs capacity),
Adjustable Front Seat. |
|
|
