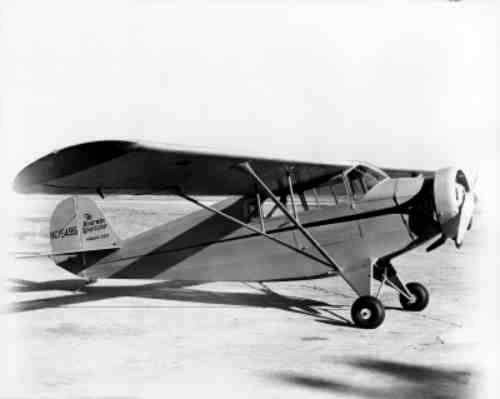

Rearwin Sportster Aircraft history performance and specifications
In
1935 the Sportster was certified with a 70 HP LeBlond engine. Over 30
copies were built.
Along with
the Porterfield's, and Taylor's of the same era, to my eye, this airplane
defines the American light-plane. It went on to be produced with an NACA
cowling, and a Ken-Royce radial engine.
|
Sportster |
| Specifications |
7000
|
8500
|
9000W/
9000-L/
9000-KR |
| Aircraft Type Certificate |
574
|
591
|
624
|
| Engine |
LeBlond 5DE |
LeBlond 5DF
|
Warner
Scarab/
LeBlond/
Ken-Royce
|
| Horsepower |
70
|
85
|
90
|
| Wing Span |
35 ft
|
35 ft
|
35 ft
|
| Length |
22.3 ft
|
22.3 ft
|
22.3 ft
|
| Height |
6.75 ft
|
6.75 ft
|
6.75 ft
|
| Wing Area |
166 sq ft
|
166 sq ft
|
166 sq ft
|
| Power Loading |
18.16 lbs/hp
|
15 lbs/hp
|
16.2 lbs/hp
|
| Wing Loading |
20.14 lbs/sq
ft |
16.6 lbs/sq
ft |
8.8 lbs/sq
ft |
| Empty Weight |
853 lbs
|
830 lbs
|
861 lbs
|
| Useful Load |
557 lbs
|
580 lbs
|
599 lbs
|
| Payload |
220 lbs
|
220 lbs
|
220 lbs
|
| Gross Weight |
1410 lbs
|
1410 lbs
|
1460 lbs
|
| Fuel Capacity |
24 gal
|
24 gal
|
24 gal
|
| Oil Capacity |
2 gal
|
2 gal
|
2 gal
|
| Maximum Speed |
110 mph
|
116 mph
|
123 mph
|
| Cruising Speed |
98 mph
|
103 mph
|
110 mph
|
| Landing Speed |
35 mph
|
35 mph
|
38 mph
|
| Cruising Range |
475 miles
|
475 miles
|
450 miles
|
| Length of Take Off Run |
280 ft
|
250 ft
|
|
| Take Off |
10 sec
|
8 sec
|
|
| Wheels |
7.00 x 40
|
7.00 x 4
|
|
| Standard
Equipment |
| Collector
Ring, Altimeter, Tachometer, Oil Pressure Gauge, Oil Temperature
Gauge, Switch, Two Fuel Gauges, Fire Extinguisher, First Aid Kit,
Cabin Door Lock -- Yale Type, Luggage Compartment (50 lbs capacity),
Dual Controls, Hydraulic Landing Gear, Wired for Navigation Lights,
Safety Belts, Fuselage Lining, Cushions and Seat Backs. |
|
Special Equipment ("Deluxe" models) |
Goodyear
18x8x3 Wheels and Brakes or Bendix Wheels and Brakes with General
Streamline Tires, Navigation Lights, Speed Ring, Battery, Carburettor
Heater, Tail Wheel, Special Instruments.
|
|
|
