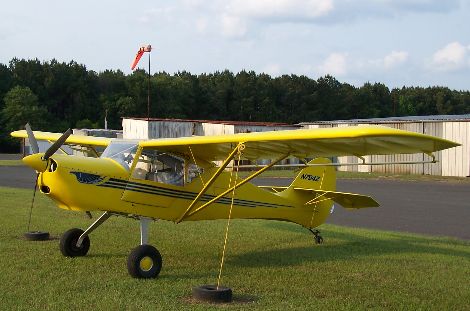

Avid Mk IV
| |
MARK IV |
|
|
STOL |
Speedwing |
|
wing
span |
29
ft. 10.5 in. |
23
ft. 11.5 in. |
|
wing area |
122.46 sq. ft. |
97.31 sq. ft. |
|
wing chord |
42
in. |
42
in. |
|
wing chord with
flaperons |
51
in. |
51
in. |
|
aspect ration |
7.1 |
5.65 |
|
wing loading
@Gross Weight |
9.39 lbs./sq. ft. |
9.36 lbs./sq. ft. |
|
length |
17
ft. 11 in. |
17
ft. 11 in. |
|
length /wings
folded |
19
ft 11 in. |
17
ft 11 in. |
|
width /wings
folded |
7
ft. 9.5 in. |
7
ft. 9.5 in. |
|
height |
71
in. |
71
in. |
|
cabin width |
39.5 in. |
39.5 in. |
|
empty weight |
440-510 lbs. |
510 lbs |
|
gross weight |
1,150 lbs. |
1,050 lbs |
|
useful load |
540+ lbs. |
540+ lbs. |
|
fuel capacity |
14
gal. + 14 opt. |
18
gal. + 18 opt. |
|
cruise speed |
90 mph. |
115 mph. |
|
|
