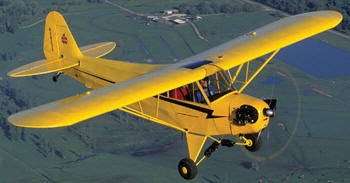

BushCub SP and XP

BushCub SP's are offered in completely-built, ready to fly Certified Special Light Sport Aircraft, partially built Experimental LSA kits and Experimental kit form.

The fuselage is a little wider than the original Cub which allows an increase in the gross weights for the BushCub SP model to 1320 lbs., the Light Sport Aircraft/Sport Pilot maximum without floats.   All Chromemoly parts are powder coated for maximum protection from corrosion. Longerons are oiled and sealed to resist corrosion.  Extensive use of composites in some non-structural areas keeps weight down.

The BushCub SP is powered by the 100 h.p. Mattituk TMX-O200, a completely new engine built with all Teledyne Continental genuine parts.  Electric start, carburettor, light-weight alternator and Slick mags are standard.  A 12 volt sealed battery comes standard.  The BushCub XP can handle engines of 180 hp+ for increased performance.

The wings are all-aluminium structure with Superflite covering.  The NACA 23012 airfoil is the same that the venerable Taylorcraft uses, and allows for higher speeds and increased performance.  All control cable are routed inside the structure for a cleaner, neater installation.  Flaps and wing tanks can be added as options.

Tail feather are balanced PA-18 style for lighter control input forces.

Solo flight is accomplished from the front seat, where visibility is better.

Hydraulic brakes, front and rear seats, are standard.

Covering is done in the Superflite process, applied per FAR specifications.  The aircraft is painted with the Superflite polyurethane system.

specifications Bushcub SP

powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range
100 h.p. Mattituk TMX-O200,
x
23 ft
6.8 ft
35.20 ft
184.80 sq. ft
2
818lbs
502lbs
1320lbs
18 gal (29 gal Optional)
249 miles

performance

takeoff distance, ground roll
takeoff distance, 50 ft obst.
rate of climb
max level speed
cruise speed
landing distance, ground roll
x
250 feet
1000 fpm
x
95 mph
225 feet

limiting and recommended speeds

design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed
x
x
34 mph
x

All specifications are based on manufacturer's calculations



specifications Bushcub XP specifications

powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
maximum takeoff weight
fuel capacity
range
180 hp+
x
23 ft
6.8 ft
35.20 ft
184.80 sq. ft
2
1000lbs
700lbs
1700lbs
40 gal
440 miles

performance

takeoff distance, ground roll
takeoff distance, 50 ft obst.
rate of climb
max level speed
cruise speed
landing distance, ground roll
100 feet
x
1600 fpm
x
110 mph
200 feet

limiting and recommended speeds

design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed
x
x
35 mph
x

All specifications are based on manufacturer's calculations
