Aero AT 3

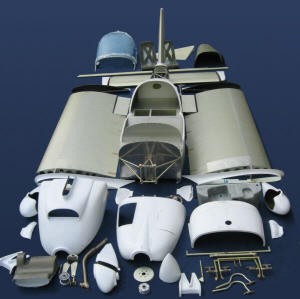

The Aero AT-3 is a new Polish aircraft certified in the JAR VLA (Very Light Aircraft) category.  Designed and built by Aero Sp. z o. o. of Warsaw, the AT-3 is a low cost, low maintenance basic training aircraft, also suitable for touring, with a cruise speed of 108-112 kts (+200 kmh) and a range of approximately 800 km. A kit version is on offer.



specifications

powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range
Rotax 912 S 100 hp
GT-2/173/VRR-FW101SRTC or  3 blade ELPROP ground adjustable
19.29 ft
7.31 ft
24.77 ft
100,6 ft2
2
771 lb

511lb
1282 lb
18.5 gal

432nm

performance

takeoff distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling
525/492 feet
730 fpm

116 KIAS
108 KIAS
525/492 feet
x

limiting and recommended speeds

design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed
106 KIAS
120 KIAS
44 KIAS
x

All specifications are based on manufacturer's calculations
