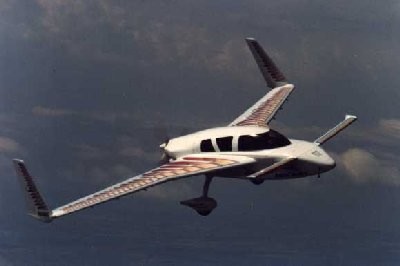

AeroCad AeroCanard FG
The AeroCanard kit includes a
pre-moulded lower fuselage, top, and fuel strakes; prefabricated
spars and pre-cut foam cores; and numerous smaller parts that can be
time-consuming to make - including wheel pants, canard tips,
instrument panel and various NACA inlet scoops to name a few. The
kit can be purchased all at once, says Russell, or as 16 separate
sub kits with or without the hardware (wheels, axles. brakes, etc.
and raw materials fibreglass, resin, etc.), excluding engine,
avionics and paint. The complete kit includes everything needed to
complete the airframe--even down to paint brushes and resin mixing
cups.
|
Aircraft Item |
AeroCanard-FG
AeroCanard-RG |
AeroCanard-SB |
MKIV |
Velocity FG |
|
Front Seat |
42.00" |
42.00" |
42.00" |
42.50" |
|
Rear Seat |
39.50" |
36.00" |
36.00" |
39.50" |
|
Head Room Width Front
Seat |
38.00" |
36.00" |
36.00" |
40.00" |
|
Head Room Width Rear
Seat |
38.00" |
36.00" |
36.00" |
38.00" |
|
Engines Used |
O-320 -
IO-360 |
O-320 -
IO-360 |
O-360 |
O-320 -
IO-360 |
|
Control Stick |
2 Side
Sticks |
2 Side
Sticks |
2 Side
Sticks |
1
Centre Sick |
|
Throttle Quadrant |
Center |
Centre |
Centre |
Left
Side Only |
|
Brake Pedals
(Adjustable) |
Both
Sides 5" |
Both
Sides 5" |
Copilot
Only 5" |
Both
Sides 2" |
|
Speed Brake |
Electric |
Electric |
Manual |
Electric |
|
Cockpit Heat |
Nose
Oil Cooler |
Muff
Off Exhaust |
Muff
Off Exhaust |
Nose
Oil Cooler |
|
Standard Main Wheels |
600-6
Double Puck |
600-6
Double Puck |
500-5
Single Puck |
600-6
Single Puck |
|
Main Gear |
Removable-FG
Retractable-RG |
Removable |
Removable |
Non-Removable |
|
Removable Instrument
Cover |
Yes |
Yes |
Yes |
No |
|
Empty Weight |
1200
Lbs |
1150
Lbs |
1100
Lbs |
1300
Lbs |
|
Gross Weight |
2150
Lbs |
2050
Lbs |
2050
Lbs |
2250
Lbs |
|
Useful Load Less Fuel |
950 Lbs |
900 Lbs |
950 Lbs |
950 Lbs |
|
Fuel Useful |
63 Gal |
63 Gal |
52 Gal |
65 Gal |
|
Fuel Tanks |
No
Switch/3.5 Gal Sump |
Selector/1.5 Gal. Sump |
Selector/1.5 Gal. Sump |
No
Switch/5 Gal Sump |
|
Type Seats Used |
F/Bench
R/Bench |
F/Bucket R/Bucket |
F/Bucket R/Bucket |
F/Bucket R/Bench |
|
Nose Gear (Standard) |
Retrectable |
Retrectable |
Retractable |
Fixed |
|
Time To Build |
1400 MH |
1400 MH |
2500+
MH |
1400 MH |
|
Total Kit Breakdown |
16
Total |
16 Kits |
plans
built |
2 Total |
|
Item |
AeroCanard-FG
(Fixed Gear) |
AeroCanard-RG
(Retractable Gear) |
AeroCanard-SB
(Small Body) |
|
Top Speed, MPH |
225
|
225
|
220
|
|
Cruise Speed, MPH |
205
|
210
|
200
|
|
Range, SM |
1000
|
1000
|
1000
|
|
Rate of Climb, FPM |
1700
|
1900
|
1500
|
|
Take Off Roll, Ft. |
800
|
800
|
1200
|
|
Landing Distance, Ft. |
1500
|
1500
|
1500
|
|
Service Ceiling, Ft. |
25,000
|
25,000
|
20,000
|
|
Engine Used |
Lyc LIO-360
|
Lyc LIO-360
|
Lyc O-360
|
|
HP/HP Range |
200/160-200
|
200/160-200
|
180/160-200
|
|
Fuel Capacity, Gal. |
63
|
50
|
52
|
|
Empty Weight, Lb. |
1200
|
1300
|
1150
|
|
Gross Weight, Lb. |
2150
|
2150
|
2050
|
|
Height, Ft. |
7.75
|
7.75
|
7.75
|
|
Length, Ft. |
16.75
|
16.75
|
16.75
|
|
Wing Span, Ft. |
28.10
|
28.10
|
28.10
|
|
Wing Area, Sq. Ft. |
102.3
|
102.3
|
102.3
|
|
Number of Seats |
4
|
4
|
4
|
|
Landing Gear |
Tri/Nose Gear/R
|
Tri/R
|
Tri/Nose Gear/R
|
|
Bldg. Materials |
Composite
|
Composite
|
Composite
|
|
Bldg. Time, Man Hours |
1400
|
1700
|
1500
|
|
Number Completed/Flown |
13
|
1
|
N/A
|
|
