CH 801

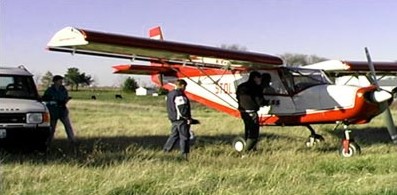

The STOL CH 801 is a four-seat sport utility kit aircraft based on the successful two-seat STOL CH 701 design developed by aeronautical engineer Chris Heintz in the mid eighties. Since its introduction in 1986, more than 400 short take-off and landing STOL CH 701 aircraft have been successfully built and flown around the world, many being used for light utility purposes.

specifications

powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range
150 - 240 hp
x
24 ft 6 In.
10 ft  0 In.
31 ft . 4 In.
167 sq.ft .
2
1,150 lbs
1,050 lbs
2,200 lbs
30 gal. (2 x 15)
x

performance

takeoff distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling
x
x
120 mph
x
x
x

limiting and recommended speeds

design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed
x
150 mph
x
x

All specifications are based on manufacturer's calculations
