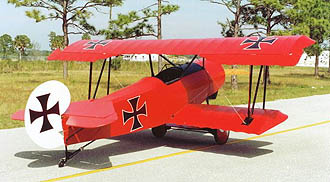

FOKKER D-VI
Biplane3/4
scale replica
Airdrome
Aeroplanes
All aluminium tubing to complete
fuselage, wings, landing gear, cabines, lift struts, and formers.
All aluminium sheet metal to construct gussets, cowling, & seat. All
machined parts for control systems, lift struts, axles, and wings.
All AN hardware to build aircraft, eye bolts, locknuts, thimbles,
nico press swedges , aircraft cable (rudder cables, drag/anti/drag
braces). Ball bearing rod ends for control system. Stainless steel
pop rivets. Main wheels, tail wheel, spun aluminium nose bowl, plans
and builders video.
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
Rotax 503, 52 HP VW
Torquemaster
x
x
x
x
x
1
297 lbs
242 lbs
x
x
x |
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
x
750 fpm
78 mph
70 mph
x
x |
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
x
x
32 mph
x |
All specifications are based on manufacturer's
calculations
|
|
|
