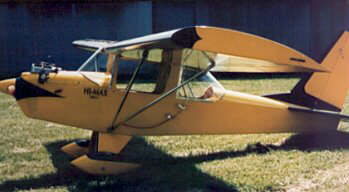

Hi-Max 1700R

A wrap-around windshield of Lexan makes for excellent visibility and comfortable flying. Optional windows are removable for open-air flying in the summer. Wood was chosen as the basic building material. It is easy to work with, dependable in its strength characteristics, and is not bothered by the vibrations associated with 2-cycle engines.

Construction techniques are of the old-fashioned, tried and true wood truss and plywood gusset method. It is very simple, and builds quickly.

specifications

powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range
Rotax 447
x
16' - 0"
x
25' - 0"
112.5 sq. ft.
1
328 lbs.
x

560 lbs.
x
x

performance

takeoff distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling
< 100 ft.
x900 fpm
80 mph
70 mph
210 ft.
x

limiting and recommended speeds

design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed
x
100 mph
28-31 mph
x

All specifications are based on manufacturer's calculations
