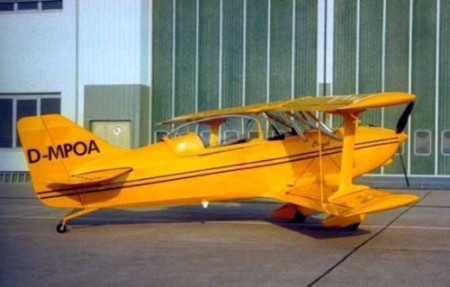

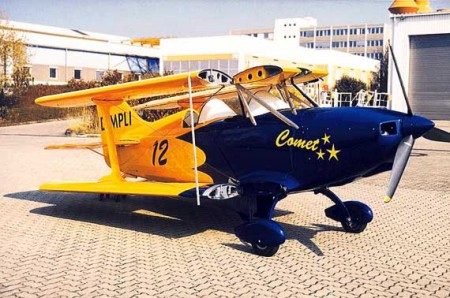

The FK 12 Comet has good flight performance due
to optimized laminar profile with four ailerons (flaperons)
over the entire wingspan. The aircraft can be adapted within
minutes from open cockpit to a one or two-seater closed
cockpit.
The wings can be folded in a matter of minutes
by one person alone! – Transport width: 2.42 m. The aircraft

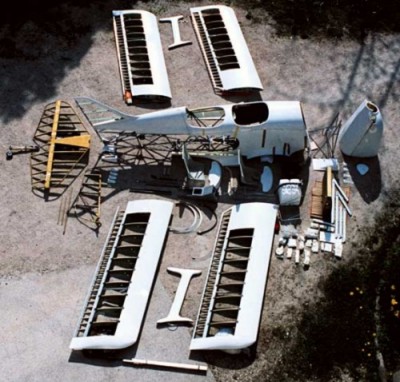

can be bought complete or as a kit.
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
Rotax 912ULS
Ducaine composite fixed pitch three-blade.
l8ft
6ft 2in
23ft
144.2sq ft
2
661lb
330lb
9921b
12.7 Imp gal
x |
performance
takeoff
distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
x
1,378ft/min
x
102 knots
x
x |
limiting and recommended speeds
design
manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
x
119 knots
33 knots
x |
the empty weight can be reduced to 5821b in the
Microlight
category and the max AUW increased to 1,146lb in the Experimental
category. When operated in the Experimental category the G limits
also increase to +6/-2.66G. Folding wings
All specifications are based on
manufacturer's calculations
|
