Hummel CA 2

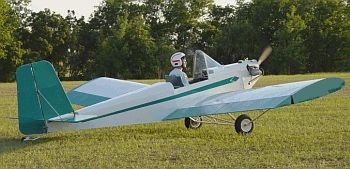

The CA-2 is a light all metal legal
ultralight (with Rotax 277) aircraft that can be built inexpensively
from plans (approximately $2,000-2,500 for airframe) in 600 hours.
Easy construction from sheet, angle extrusions, tubing and pop
rivets. No welding, gluing, machining, or difficult forming
required. Fuselage assembly performed on a flat table and wing
assembly using a simple wood jig.
Strong all metal wing (utility
category +4.4, -2.2g), smooth push rod controls, large ailerons and
rudder, wide landing gear stance for easy ground handling, and wing
detaches with removal of three bolts.
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
x
x
16.5 ft
x
26 feet
17 sq. feet
1
250 lbs
x
500 lbs
5 gallons
125 mile |
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
x
x
63 mph
50 mph
x
x |
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
x
80 mph
26 mph
x |
All specifications are based on manufacturer's
calculations
|
|
|
