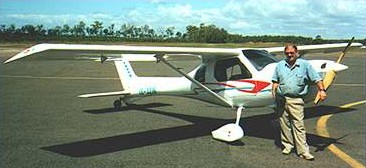

Jabiru SP-T
The Jabiru SP-T is the new taildragger version of
the Jabiru SP model. The SP has the longer (600mm/2’) fuselage
extension and the standard 8 metre (26’4") wingspan. The SP-T
taildragger has the main gear moved forward, a larger rudder,
differential braking through toe brakes and a steerable tailwheel.
The SP-T model also incorporates the standard Jabiru 6 cylinder
cowlings which can accommodate the builder’s choice of Jabiru’s 4
cylinder 8Ohp engine or its 6 cylinder l2Ohp engine. Cruise speed
with the 4 cylinder engine is 105 knots and 120 knots with the 6
cylinder engine.
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
Jabiru 2200cc - 80hp or 120hp
2 Blade Fixed Pitch
Wooden/Composite
60" dia
18’ 5"
6’ 6"
26'3"(SP) & 30’ 8"(UL)
85 sq ft (SP) & 100 sq.ft UL
2
(532.4 lbs) (578.6 lbs)
(457 lbs)
(1034 lbs) (1100)
14.3gals
430nm |
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
325ft
x
100kts(4Cyl) & 120kts(6Cyl)
110kts(4Cyl) & 132(6Cyl)
90kts
546ft
15,000ft |
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
x
120kts (4Cyl) & 132kts
35kts
x |
All specifications are based on manufacturer's
calculations
|
|
|
