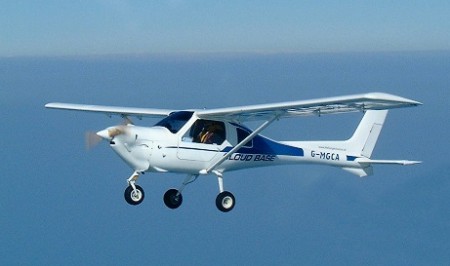

Jabiru UL
The Jabiru UL was developed
earlier this year to meet the FAI European Microlight definition
which requires a MTOW of 450kg, 65km/hour stall speeds and maximum 2
seats.The existing Jabiru SK was modified by increasing the wing
span by 1372mm to 9398mm and by a consequent increase in the
fuselage boom length 610mm to an overall length of 5640mm. The SK's
lower ventral fin has been reduced in size and the flaps have been
extended by 1830mm overall. This has resulted in an aircraft which
has a low 35 knot stall speed, short takeoff performance, almost motorglider glider ration (17:1 {with engine at idle} - Yes! it can
be thermalled!), and exceptional economy. It will cross country
cruise at 100kts on 15 litres/hour but when operated around 70kts
returns 7.5 litres/hour! That's over 8.5hrs endurance!
The Jabiru comes complete with
everything except paint, upholstery and radio – it includes VFR
instruments, upholstery patterns and even a battery purchase order
for your local Century/Yuasa distributor. The kit build time is
typically 600 hours from start to finish. Everything has been
thought of right down to resin mixing cups, mixing sticks,
applicators and brushes.
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
Jabiru 2200cc 80hp
Propeller 2 Blade Fixed Pitch
60" dia. x 40" pitch
18’6"
6’7"
30’10"
100 sq.ft
2
532 lbs
458 lbs
990 lbs
14.3
gals
450nm |
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
325ft
1000
ft/min.
110kts
100kts
520ft
15,000ft
|
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
90kts
116kts
34kts
x |
All specifications are based on manufacturer's
calculations
|
|
|
