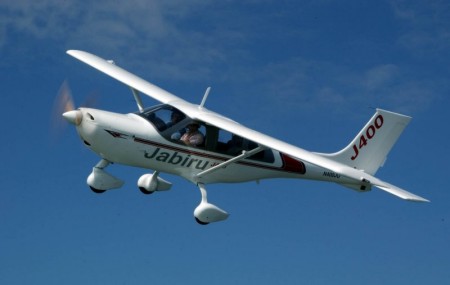

Jabiru J400
The Jabiru J400 (4 seater) has
evolved from combining the best features of the LSA, SP & UL models
all put together & coming up with a new clean sheet design that has
combined features. It comes with the standard LSA wing span with
fuel in the wings. The longer tail boom results in more elevator
and empennage authority, reducing the stall speed to 45 kts and
increasing directional stability. The J400 was developed as a great
replacement to the GA alternatives i.e. Cessna 172. The aircraft had
it's maiden flight in Bundaberg in the 16th of March as a two seater.
The flight testing as a four seater has been completed with great
results.
The Jabiru J400 will cruises at 115 knots on 20
litres/hour, depending on the options selected.
Jabiru have increased the Maximum Take Off Weight
(MTOW) is now 700Kg All of the Jabiru kitplane models have been
structurally tested to 8.5g
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
Jabiru 3300cc
2 Blade Fixed Pitch
Wooden/Composite
60" dia x 53" pitch
21' 5"
7' 2"
26’ 4"
86.1 sq.ft
2
693 lbs
847 lbs
1540 lbs
36 gals
828 sm |
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
960ft
1000 ft/min
130kts
120kts
640ft
15,000ft |
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
90kts
138kts
48kts
x |
All specifications are based on manufacturer's
calculations
|
|
|
