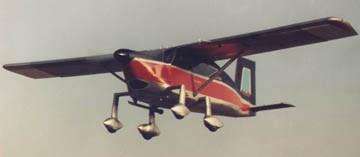

Magnum Pickup
Designed by Terrence
O'Neill, President OAC, Magnum is a bush-type, originally designed to
suggestions offered in response to a questionnaire which was sent to all
Charter (bush) pilots in Alaska in 1981. Some 22% of all Alaskan Charter
pilots replied. Magnum was flown to Oshkosh back in 1944 with
swing-wings. It was modified in 1986 to swingtail-loading and an
aero-converted Ford 351W, later supercharged to 380-hp.
Wing sweep is variable by
modifying the length of the front auxiliary wing mount lug. This allows a
builder to compensate for different weight powerplant installation, by
swing the wings forward or aft, to place the mean aerodynamic chord in the
correct location over the CG, and no ballast is required. Brake masters,
battery, etc., for service are out in the open for easy maintenance
access. Tail can be made to swing open (Swingtail option) to load bulky
cargo, such as four-by-eight plywood sheet flat-on-the-floor, or a
snowmobile, or ATV. Opening: 48.5" w. by 36" ht. Roll control by
Robertson-type spoilerons for STOL aircraft. Large flaps, spanning 12 ft.
on each side, deflect downward 55 degrees. Horizontal stabilizer has
unique two-position slots which prevent tail-stall to flight angles of
attack of about 30 degrees, thereby retaining un-stalling power of the
tail. Slots also work to supply more pitch control margin when the full
flaps are deflected. All fuel is carried in a single external under cabin
instantly DROPPABLE gas tank, to greatly increase passenger safety in the
event of a forced landing. Angle of Attack Indicator plans are included,
and strongly urged to be installed, for safety.
Large cargo loading via swing tail; cabin
can carry 4x8 plywood flat on floor or a snow-mobile in cabin.
Plans built
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
Ford 351 cu. in. HP
Range380/350-450
x
25.67ft
x
36ft
189sq.ft
2
1900lb
x
3800lb
110gal
875n.m
|
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
1000ft
2000fpm
180mph
140mph
1000ft
20,000ft
|
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
x
x
61mph
x |
All specifications are based on manufacturer's
calculations
|
|
|
