Maverick
(Murphy)

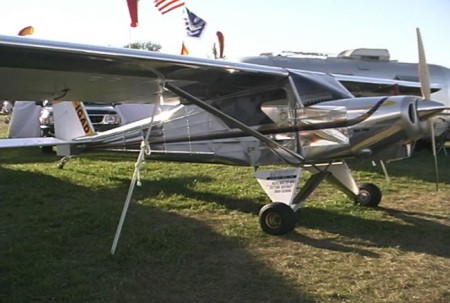

The Murphy Maverick which was
introduced in 1993 is a smaller, yet different version of the Rebel
using many of the same construction materials and techniques. The
craft is one of the few that can be flown comfortably on the 503
Rotax engine. The fuselage is all metal, and the wing and tail
sections are metal with fabric covering. Two wings are available in
lengths of 29' 5" and 32' 5".
The Maverick is a side by side seating two place taildragger, in a
tractor configuration. The cabin while comfortable seemed a little
tight for two hefty pilots or pilots dressed for winter conditions
in Canada.
The factory reports testing to +5.7 and -3.8 G's. Building times
reported at just over 1,000 hours.
specifications
|
Rotax 503
Std Wing |
Rotax 582
Std Wing |
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
53
hp
GSC 68" GA
x
x
x
147sq.
ft
x
395-420
lb
530-555
lb
950
lb
5
US gal
280
miles |
65
hp
GSC 68" GA
x
x
x
147sq.
ft
x
440-460
lb
490-510
lb
950
lb
5
US gal
264
miles |
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
150ft
600fpm
95mph
80mph
200ft
x |
100ft
900fpm
110mph
85mph
200ft
x |
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
x
120mph
32mph
x |
x
120mph
32mph
x |
All specifications are based on manufacturer's
calculations
|
|
|
