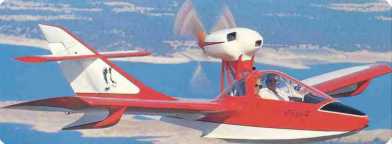

Osprey 2
The Osprey is a two-place amphibian with tricycle,
retractable landing gear. Construction is basically all wood and
built much like a large scale model airplane. Well proven with 500
or more now flying, this 1974 design is ideal for the amateur wood
worker's shop.
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
Lycoming 150-160 hp
x
21ft
x
26ft
130 sqft.
2
960 lbs.
420 lbs.
1560 lbs.
32 Gal
500+miles |
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
400 ft
1,200 fpm
x
130 mph True
700 ft.
20000ft |
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
x
150 mph
65 mph
x |
All specifications are based on manufacturer's
calculations
|
|
|
