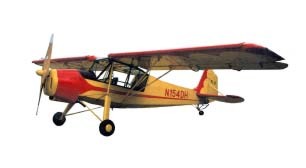

Pazmany PL-9 Stork

The original German Luftwaffe Fieseler F-156 Storch was an outstanding W.W.II airplane, designed to take off and land in extremely short distances. According to flight tests results quoted by S. Hoerner (Chief Aerodynamicist of the Fieseler Company) the Storch had a take off ground roll of 131 feet and a landing roll of 36 feet with 13 miles per hour head wind.

The Pazmany PL-9 Stork is an 3/4 replica.

It is not a look-alike. It authenticity is backed up by more than 9000 hours of aeronautical engineering design in order to obtain the same flying and handling characteristics of the original German Aircraft.

There are three compelling reasons why Ladislao Pazmany designed PL-9 Stork:

1. To provide amateur builders a professionally designed STOL aircraft which will please the sport pilot, the "nostalgia" pilot and the "bush" pilot.

2. To provide a well proven aircraft configuration designed for a number of functions such as : Border Patrol, Fish Spotting, Highway Patrol, Forrest Fire Detection, Property Surveillance, Farm Work, Pollution Detection, Missionary Work Etc. At the present, certification of the PL-9 is not considered. "Experimental Amateur Built" aircraft can not be used for hire in the U.S.A.

3. The welded chrome alloy steel tube fuselage. The aluminium sheet metal/fabric covered wing and empennage, seem to very popular with the amateur builders, although it is a 50 year old technology.

specifications

powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range
LYC 0-320 HP Range 150 -160
x
24ft 3ins
7ft
36ft
166sq.ft
2
1132lbs
x

1739lbs
30gal
332s.m.

performance

takeoff distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling
250ft
1400fpm
116mph
104mph
90ft
15000ft

limiting and recommended speeds

design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed
x
x
33mph
x

All specifications are based on manufacturer's calculations
