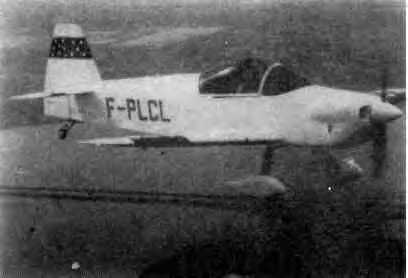

C.P. 90 Pinocchio
The C.P. 90 Pinocchio is a single
seat, low wing aircraft designed by Claude Piel. Construction
materials are wood & fabric. And the landing gear is a fixed
tailwheel configuration.
specifications
length
height
wing span
wing area
seats
empty weight
useful load
fuel capacity |
19.7 ft
6.0 ft
23.6 ft
104 sq ft
1
695 - 760
lbs
1015 -
1105 lbs
95 lbs |
|
Performance |
|
|
|
|
| |
65 HP |
90 HP |
115 HP |
|
Max Speed (mph) |
130 |
150 |
160 |
|
Cruise 75% 5,000 ft |
118 |
140 |
152 |
|
Cruise 65% 5,000 ft |
110 |
130 |
143 |
|
Range (miles) |
400 |
350 |
380 |
| T/O Distance (ft) |
|
580 |
|
|
Landing Distance (ft) |
|
525 |
|
|
Stall Speed (mph) |
45 |
|
|
|
Approach Speed |
|
65 |
|
|
Vne |
200 |
200 |
200 |
|
Rate Of Climb (ft/min) |
785 |
1140 |
1220 |
|
|
|
