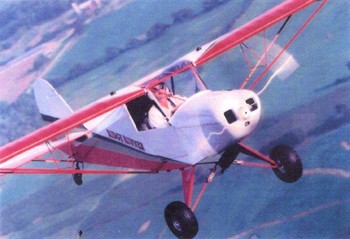

Ridge Runner
Models 1, 2 and 3
A
new series of ultralight three axis aircraft supplied in kit form
with a pre-welded fuselage. The wings are designed to fold and the
aircraft can be trailered home. The model 1 is a single seater while
the model 2 has a small jump seat suitable for a child or for
carrying luggage.
specifications
|
Ridge Runner Ultralight |
Ridge Runner II |
Ridge Runner III |
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
x
x
17 ft
5.17 ft
26.20 ft
99.40 sq. ft
1
250lbs
250lbs
500lbs
5 gal
175 miles |
x
x
17 ft
5.17 ft
26.20 ft
99.40 sq. ft
2
350lbs
250lbs
900lbs
5 gal
175 miles |
x
x
17 ft
5.17 ft
26.20 ft
99.40 sq. ft
2
360lbs
540lbs
900lbs
10 gal
275 miles |
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
50ft
800fpm
x
58mph
50ft
x |
100ft
1400fpm
x
90mph
75ft
x |
40-75ft
1600fpm
x
90mph
50-100ft
x |
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
x
x
24mph
x |
x
x
29mph
x |
x
x
26-28mph
x |
All specifications are based on manufacturer's
calculations
|
|
