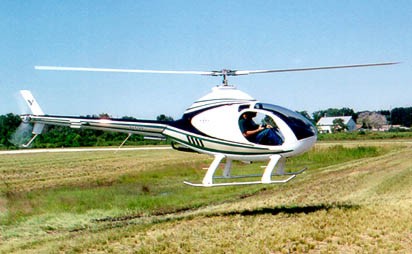

RotorWay
Exec 162F
Combining a technological breakthrough in
powerplant design with refinements to a highly successful, award
winning airframe, the new Exec 162F has elevated a tradition into a
revolution in helicopter performance.
The Exec 162F's powerplant is the most advanced
in the industry, utilizing the very latest, fully automated, digital
electronic control system known as "FADEC". Designed to incorporate
high performance with maximum reliability, maintenance on the Exec
is kept to a minimum. Fuel consumption is only 8 gallons per hour
and Avgas is not necessary, the Exec 162F works perfectly with 92
Octane. Long lifetime components with replacement costs typical of
those found in the amateur built category are reflected in the
Exec162F's incredibly low operating costs. Costs are a fraction
those of the nearest production craft.
The Exec 162F utilizes an asymmetrical airfoil
for improved autorotation characteristics and safety. An elastomeric
rotor hub eliminates a lot of moving parts, bringing considerable
simplicity to the rotor system.
Dimensions
Length, overall
28 ft 8 in
Height to top of rotor 8 ft
Main rotor diameter 25 ft
Tail rotor diameter 4ft2 1/4in
Weights and loadings
Mtow 1,500 lb
Empty weight 975 lb
Useful load 525 lb
Usable fuel 17 usg
Seats, side-by-side
2
performance
Vne and max level100
kt
Normal cruise 82 kt
Best rate of s/I climb 1,000 fpm
Service ceiling 10,000 ft
HIGE 7,000 ft
HOGE 5,000 ft
Range, no reserve 180 nm
Endurance 2 hr
Engine: RotorWay R1 162F (150 hp) liquid-
cooled, with FADEC. Engine TBO: 1,500 hr.
Fuel type: premium unleaded.
|
|
|
