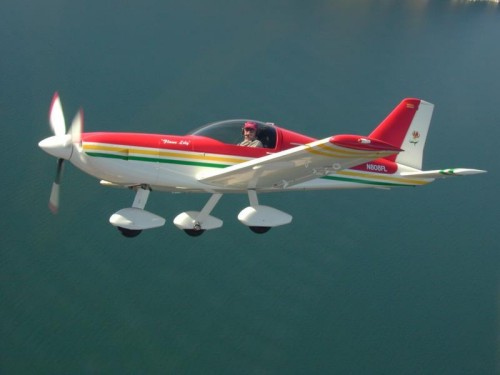

Rans S-16 Shekari

Build fast and fly fast, the S-16 has the quick build built in.  The outcome is a precise, built to last aircraft.  The metal wings and control surfaces come pre-formed with most all holes pilot drilled.  The sleek fuselage assembles from our four molded shells attached to a welded steel cockpit cage for extra accurate construction and crew protection.  To fly the Shekari is to experience sweet control harmony and comforting stability coupled with aerobatic prowess.

specifications

powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range
Continental IO-240B 125 HP
x
18 ft 8 in
5 ft 5 in
24.0 ft
87 sq ft
2
930 lbs
520 lbs
1450 lbs
32 gal US
853 miles

performance

takeoff distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling
500 ft
1000 fpm
x
160 mph
525 ft
14,500 ft

limiting and recommended speeds

design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed
x
220 mph
62 mph
x

All specifications are based on manufacturer's calculations
