Starduster
Too SA300

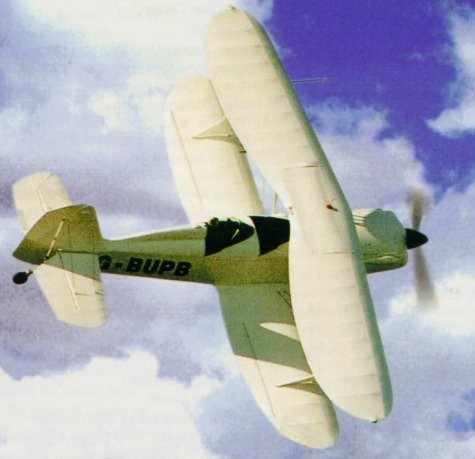

The STARDUSTER
TOO was built to fill a need for a reasonably sized, two-place,
open sport biplane. It was built to fly just for fun and is not
intended to be an aerobatic airplane. It is quite strong, however,
and many owners use the aircraft for aerobatic flight, but this is
beyond the original concept of the machine. The aircraft is rated
+/- 6G. Stability is good and the light wing loading makes slow
landing speed and short-field operation outstanding.
The main structure of the airplane is built of 4130 steel tubing and
sheet stock and has no machined fittings or other complicated bends,
which is an advantage for the average homebuilder with limited
machine equipment to use. The wings have spruce spars and the ribs
are made of 1/4" plywood using a modified M-6 airfoil. Construction
of the plane has been kept as simple as possible and it goes pretty
well.
The prints are quite complete with ribs and most fittings full size,
which saves considerable time on construction of these parts.
The O-360 Lycoming is the best optimum size engine either in the 180
HP or the 200 HP version. Quite a few Starduster Too aircraft have
been constructed with the Lycoming 10-540, with as much as 375 HP.
There are Ranger powered, Ford V-8 and V-6 powered, Continental
powered, Jacobs, and even some R-985 powered examples. The airframe
is a proven unit and allows for many different types and kinds of
engines. On the low end of the power curve there are some 125 HP
aircraft in service. There are several aircraft with over 2,500
flying hours, and one with more than 5,000 hours.
All raw materials as well as certain prefabricated parts (such as
fibreglass turtlebacks, nose cowls, wheel pants, cockpit cowlings,
welded aluminium fuel tanks, Plexiglas windshields, canopies, and
so forth) are available at reasonable prices. Most items are in
stock at all times.
The Starduster Too, when properly constructed, can be flown by any
tailwheel pilot. It is easy and fun to fly, and the plane handles as
well in the air as on the ground.
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
O-360 Lycoming HP 180/200
x
20' - 7"
x
24' - 0"
165 Sq. Ft
2
1,000 lbs.
x
1,704 lbs.
aero
28.0 Gallons
main 17.0 Gallons wing
x |
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
x
1,500
fpm
x
134
mph
x
23,000
ft |
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
105
mph
180
mph
56
mph
x |
All specifications are based on manufacturer's
calculations
|
|
|
