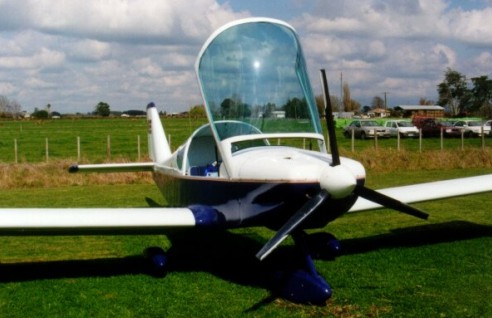

Storm 300 Special
With over 10 years in
aircraft industry S.G.Aviation has become one of the most successful
kit and ready to fly manufacturers in the world in its category. S.G.
Aviation manufactures the world’s finest Made in Italy style
aircrafts with a proven builder assistance program, flight training
and dedicated technical support, S.G.Aviation assures builders’
success in building and safety flying these aircrafts in a short
time.
Developed by Giovanni Salsedo as a
light sport aircraft, the Storm 280 SI was the first version of the
Storm produced by SG Aviation, going into production in 1991. This
was followed by the 280 G, a lighter, emergency parachute capable
model to meet the German 450kg regulations. The Storm 300 Special
introduced a new profile wing and an increase from 80hp to 100hp powerplant, allowing a higher cruise speed. Like its predecessor, it
is available as a taildragger or tricycle undercarriage. The 300
Focus is the delux model with leather interior, adjustable rudder
pedals, trim controls, and wheel covers. The Storm Century is a
further development of the 300 with aerodynamic and engineering
improvements. Distinguished by a longer engine cowl and wing tanks,
it has higher weights (560kg MTOW), greater range, and a rear
luggage compartment. A four seat development is also available, the
2+2 400 series (special and focus versions), and the larger 500
series which comes as a tricycle (500 CLK) or retractable
undercarriage (500 SLK) version. The Storm is available built-up, as
a quick-build kit, or as a standard kit.
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |

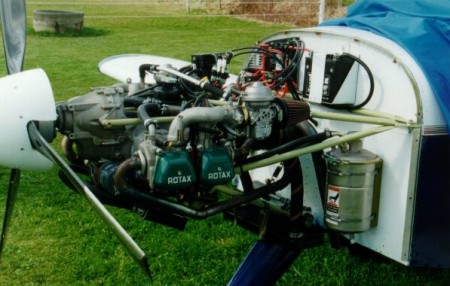

Rotax 912
100HP
x
22 ft.
x
25,6 ft.
107,4
sq.ft.
2
644 lbs
x
990 lbs.
22,5 gal.
810 s.m. |
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
395 ft.
1200 fpm
175 mph
165 mph
590 ft.
x |
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
x
192 mph
32 mph
x |
All specifications are based on manufacturer's
calculations
|
|
|
