Storm Century
Since its introduction in 1992, the
Storm 300 series has become very popular with first-time pilots and
low-time builders. The Storm 300 model is designed to achieve
maximum performance and efficiency with the new generation engines:
the six-cylinder Jabiru, the 80 or 100-hp Rotax 912S, and Subaru
automotive conversions.
The wing flaps keep the stall speed low for recreational pilots.
The Storm Century has been configured to take full advantage of its
increased useful load. New and larger wing tanks offer a larger fuel
capacity (24 US Gal. per side) resulting in superior range and
endurance, and the baggage area behind the seat has also been
increased to the point that it is possible to install 2 jump seats
for children. The baggage compartment has a high weight limit
considering the size and class of this aircraft.
The Storm 300 is a high performance two-place, low-wing, tractor
sport plane. Design features include all-metal construction, fixed
landing gear with steerable nose gear for the tricycle gear version.
The Storm 300 is a true high performance airplane with the ability
to make 750 mile cross country trips at cruise speed and 1000 miles
for the Century version with standard wing tanks.
An adequate supply of cool fresh air is available through forward
inlets; this air can also be heated using an optional heater using
either the exhaust muffler or a water radiator for engines such as
the Rotax 912 series. The Rotax 912 Series is used in certified
aircraft such as the Diamond Katana and has a high TBO of 1500 hours
or more. It operates very well on automotive fuel and fuel burns are
efficient.
Using modern day airfoil technology, clean cabin lines, and
non-complex systems, the Storm 300 and Storm Century exceed most
other aircraft in their class – in efficiency, performance,
build-time and simplicity. The Storm 300 performs best at both low
and high altitudes. Piloting workload can be shared by two pilots
owing to the dual controls, and the Storm 300 and Storm Century’s

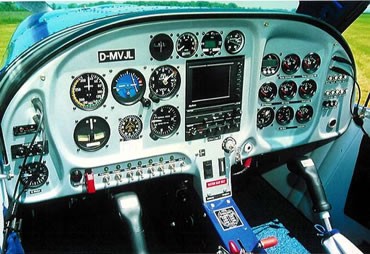

incredible stability and spacious instrument panel make them
excellent platforms for IFR flying. With extremely crisp controls
and excellent stability and control, the Storm 300 and Storm Century
allow you to fly long distances with minimal pilot fatigue, yet they
will manoeuvre with the best of the two-seat sport planes. Once on
the ground, the Storm 300 and Storm Century have the same docile
ground handling characteristics.
Making the best even better...
Sleek, fast, safe and efficient...these are the words that describe
the entire range of Storm 300 and Storm Century sport aircraft. The
modern aerodynamic design of the Storm 300 and Storm Century means
all outside surfaces are generating lift, providing fuel efficiency
and stability. The Storm 300 and Storm Century are easy to build,
easy to fly, true high performance airplane with the ability to make
long cross country trips. No other aircraft in this class offers the
quality, performance, stability, comfort, styling and superior
design of the standard Storm 300 and Storm Century. The standard
Storm 300 and Storm Century offer slightly faster cruise, top speed,
and roll rate over that of the Storm 280. The Storm 300 and Storm
Century kits are constructed with the finest quality materials
available. The aluminium is supplied by leaders in the aerospace
industry. Most of the hardware, metal, parts and components are
either certified aircraft quality or of comparable quality . Because
materials invested in the construction of your kit are so important,
you simply get the BEST.
The astonishing performance of the Storm 300 and Storm Century
demonstrates the outstanding skills of the design and engineering
team that collaborated to bring the aircraft to its present refined
state. The use of the best materials, the latest design techniques
and construction methods, together with rigorous quality control
procedures, means that S.G.Aviation is setting the foundation for a
new standard in the industry. With a choice of power plants from
mild to wild the Storm 300 and Storm Century can be tailored to your
distinctive taste. And wherever you are in the world you can always
be sure of S.G.Aviation support. The Storm 300 and Storm Century
offer a remarkable combination of speed and performance without
compromising safety.
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
Jabiru, the 80
or 100-hp Rotax 912S
x
22.3 ft
x
25.6 ft
107.4 sq. ft
2
645 lbs
UL
x
990 lbs
26.4 gal
994 sm |
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
295 ft
x
178 mph
173 mph
394 ft
x |
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
x
193 mph
38 mph
x |
All specifications are based on manufacturer's
calculations
|
|
|
