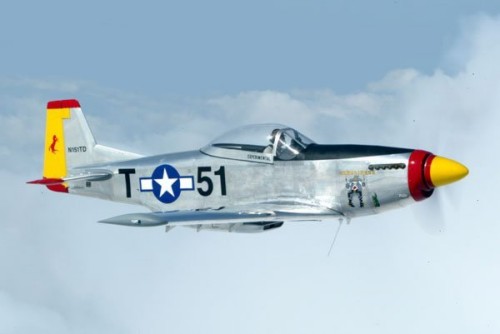

Titan T51 Mustang

Titan Aircraft is proud to introduce the T-51, the newest addition to our family of light aircraft. The T-51 incorporates material and systems not commonly found in aircraft comparably priced. This, combined with Titan Aircraft’s renowned reputation for high quality products, superior aircraft performance, and outstanding customer support, is sure to provide the pilot and kit builder a very pleasurable experience.

The kit has an estimated build time of 600 hours and includes all required material, components and fasteners. The kit does not however include the engine, propeller and instruments because of different customer preferences. When equipped with the Rotax 912S engine, controllable propeller, and a full compliment of necessary flight instruments; we expect the finished T-51 to cost well under $50,000.00.

Titan Aircraft is providing a replica P-51 that combines friendly low speed handling characteristics with agility and high performance. The T-51 is rated at a +6g / -4g load limit capability at a gross weight of 1232 pounds.

specifications

powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range
Rotax 912 S
x
23' 6"
9' 2"
24 ft
118 sq ft
2
750 lbs
x

1232 lb
x
630 mi

performance

takeoff distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling
450 ft
1200 f/m
x
150 mph
450 ft
12500 ft

limiting and recommended speeds

design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed
x
197 mph
39 mph
x

All specifications are based on manufacturer's calculations
