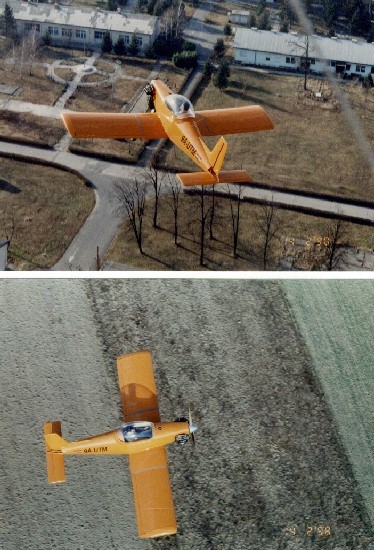

Teenie Two
Calvin Parker
Stressed for aerobatics. Prototype first flew in 1969
and is still flying.
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
VW 1600cc HP
Range60-80
x
12.8 ft
6 ft
18 ft
59 sq. ft
1
320 lb
x
585 lb
9 gal
400 n.m |
performance
takeoff
distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
600 ft
1000 fpm
140 mph
120 mph
800 ft
14,000 ft |
limiting and recommended speeds
design
manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
x
x
50 mph
x |
All specifications are based on
manufacturer's calculations |
|
|
