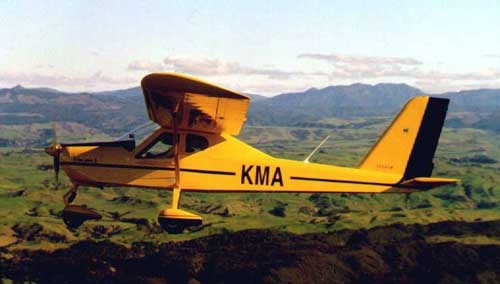

Tecnam P92 S Echo
|
specifications |
|
Wing Span |
9,3 m (30 ft 6 in) |
9,6 m (31 ft 6 in) |
|
Lenght over-all |
6,3 m (20 ft 8 in) |
6,3 m (20 ft 8 in) |
|
Height over-all |
2,5 m (8 ft 2 in) |
3 m (9 ft 9 in) |
|
Width cabin |
1,1 m (3 ft 7 in) |
1,1 m (3 ft 7 in) |
|
Wing area |
13,2 mq (142 sq ft) |
13,4 mq (144 sq ft) |
|
Transv. Dihedral |
1,5° |
1,5° |
|
Tailplane span |
2,9 m (9 ft 6 in) |
2,9 m (9 ft 6 in) |
|
Wheel track |
1,8 m (5 ft 10 in) |
2,8 m (9 ft 2 in) |
|
Wheel tyres |
5,00-5 |
4,00-6 |
|
engine and propeller |
|
Power max |
81 Hp (59,6 kW) @
5800rpm |
100 Hp (73,5 kW) @
5800rpm |
100 Hp (73,5 kW) @
5800rpm |
|
Reduction |
2,273:1 |
2,4286:1 |
2,4286:1 |
|
Propeller |
Bipala GT - 166/146 |
Bipala GT - 172/164 |
Bipala GT - 182/118 |
|
Fuel |
EURO SUPER OR UNLEADED |
|
Tanks |
70 Lt. (2x35) - 18,5
US gallons |
|
weight |
|
Designed MTOW |
550 Kg (1212 lb) |
600 Kg (1323 lb) |
|
Max take off weight
(106) |
450 Kg (992 lb) |
500 Kg (1102 lb) |
|
Basic empty weight
(standard) |
281 Kg (619 lb) |
330 Kg (728 lb) |
|
Load ultimate factor |
+6 -3 |
+5,3 -2 |
|
performance |
|
Max speed s/l |
210 km/h (113kts) |
218 km/h (118kts) |
225 km/h (121kts) |
230 km/h (124kts) |
170 km/h (92kts) |
|
Cruising speed 75%
5250 rpm |
185 km/h (100kts) |
190 km/h (121kts) |
195 km/h (105kts) |
205 km/h (111kts) |
155 km/h (84kts) |
|
Vne - never exceed
speed |
250 km/h (140kts) |
200 km/h (108kts) |
|
Rate of climb |
1080 ft/min 5,5 m/sec |
1080 ft/min 5,5 m/sec |
1260 ft/min 6,4 m/sec |
1260 ft/min 6,4 m/sec |
800 ft/min 4,1 m/sec |
|
Stalling speed (with
flap) |
61 Km/h (33 Kts) |
64 Km/h (34,6 Kts) |
|
Service ceiling |
4000 m (13000 ft) |
4000 m (13000 ft) |
4500 m (14800 ft) |
4500 m (14800 ft) |
3500 m (11500 ft) |
|
Max range (without
reserve) 65% |
750 Km (400 nm) |
550 Km (300 nm) |
|
Take off to 15m (50
ft) |
200 m (650 ft) |
200 m (650 ft) |
180 m (590 ft) |
180 m (590 ft) |
250 m (820 ft) |
|
Take off run |
110 m (360 ft) |
110 m (360 ft) |
100 m (328 ft) |
100 m (328 ft) |
120 m (400 ft)* |
Landing run
|
100 m (328 ft)
|
120 m (590 ft)
|
|
|
|
|
