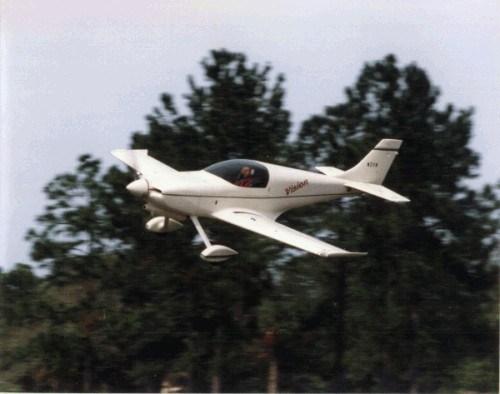

Vision
The Vision is supplied by American
Affordable Aircraft. It is an economical, 2 seat, all composite
aircraft that is built from PROVEN construction manuals. Designed
for first time builder, this rugged performer had a prototype
airframe cost of less than $6000.00 While raw material costs have
risen in the last years this still represents the best value for
product available. Each of the sub-assemblies cost less than $500.00
on the prototype. This is a plane that can actually be financed with
a credit card if desired. It is being constructed by first time
builders to test the construction manuals and no construction
manuals were sold until testing of the prototype. There are
currently many under construction. The plane is all composite with
no incompatible wood understructure and uses NO fuel susceptible
styrene foams. This is a plans built plane with supplemental parts.
This means you can build it from our detailed manuals and raw
materials or you can purchase pre formed parts from us and speed up
the process.
The company website is effectively
unreadable
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
115/120 hp
x
x
x
21' 8"
85 Sq Ft
x
850 lb
x
1350 lb.
22 gal
x |
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
800 ft
1400 fpm
x
157 mph
900 ft
x |
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
143 mph
207 mph
x
x |
All specifications are based on manufacturer's
calculations |
|
