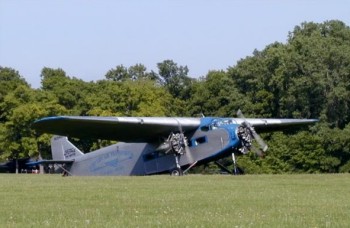

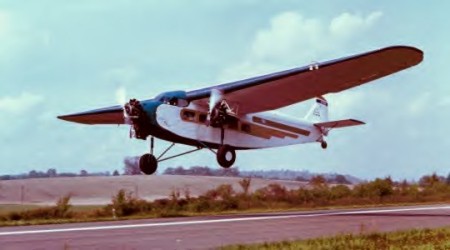

Ford 4AT Trimotor
The series of three-engine
Ford Trimotor aircraft produced during the 1920s and 1930s were classic
planes of the era. Most major airlines used these planes, especially the
4-AT, during this time, and smaller and more remote airlines around the
world continued to use the plane for many more years. Some are still in
use. The Trimotor's most famous single flight was Admiral Richard Byrd's
flight over the South Pole on November 28, 1929, when the Floyd Bennett
carried Byrd and three companions around the Pole.
The first Ford Trimotor, the
2-AT Pullman, was developed by Stout Metal Airplane Company in early 1925.
In August, Ford Motor Company acquired Stout and produced the 3-AT, which
was not a successful plane. Ford dismissed Stout and redesigned the plane.
The new plane, the 4-AT, debuted on June 11, 1926. At the time, it was the
largest civil aircraft produced in the United States. Powered by three
200-horsepower (149-kilowatt) Wright Whirlwind J4 radial engines, the
4-AT-A version of up the plane could seat up to eight passengers in its
enclosed cabin, although the two pilots were exposed to the elements in
their open cockpit. Called the "Tin Goose" because of its corrugated metal
fuselage, it was an immediate success.
Later versions were larger
and heavier, could accommodate more passengers, and used more powerful
engines. Ford also switched from using the Wright engine to Pratt and
Whitney Wasps. Variants of the 4-AT used different combinations of the
Whirlwind and Wasp engines.
The 5-AT was the primary
variant. This plane, which first flew in 1929, was larger, had more power,
and could seat 13 passengers. One variant was powered by three
450-horsepower (336-kilowatt) Wasp engines, double the power of the
earliest 4-ATs. The largest variant could seat 17 passengers. Some Ford
Trimotors were fitted with skis or floats.
In addition to carrying passengers, the
Trimotors served other purposes, including carrying freight, crop-dusting,

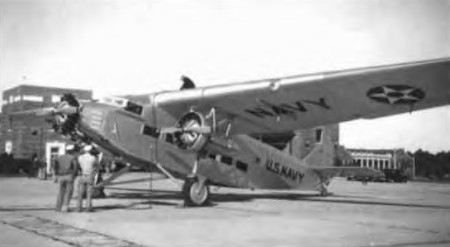

fire fighting, advertising, and exploring remote areas. The military
version of the 4-AT, designated the C-4, was used to transport military
troops. During its years in production, which ended in 1933, Ford built
approximately 80 4-ATs and 117 5-ATs as well as a small number of later
varieties and a few military aircraft.
Specifications:
|
Ford Trimotor |
Manufacture: |
Stout
Metal Airplane Company (FORD) |
Crew:
|
Two
Pilots/One Stewardess |
Dimensions:
|
Wing span:
|
77 ft. |
Length: |
49 ft |
Height: |
13
ft. |
Weight: |
Max
T/O Gross: |
13,250 lbs. |
Performance:
|
Maximum Speed: |
135
MPH |
Cruise Speed: |
115
MPH |
Stall
Speed: |
64
MPH |
Climb
rate: |
1,100
FPM |
Useful Load: |
4000
lbs. |
Range: |
550
miles/4 1/2hours |
Fuel
Capacity: |
348
Gallons |
Powerplant:
Three Pratt & whitney,R-985 9 cylinder,
radial air-cooled engines, each providing 450 h.p. @ take-off. |
|
