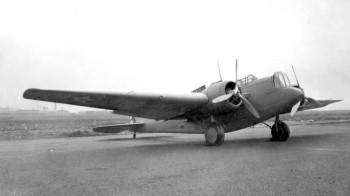

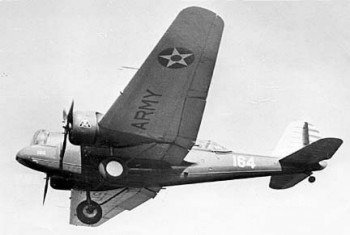

Martin B 10

The B-10, the first of the "modern-day" all-metal monoplane bombers to be produced in quantity, featured such innovations as internal bomb storage, retractable landing gear, a rotating gun turret, and enclosed cockpits. It was so advanced in design that it was 50% faster than its contemporary biplane bombers and as fast as most of the fighters. When the Air Corps ordered 121 B-10s in the 1933-1936 period, it was the largest procurement of bomber aircraft since WW I. It also ordered 32 B-10 type bombers with Pratt and Whitney rather than Wright engines and designated these B-12s.

General Henry H. "Hap" Arnold once called the B-10 the air power wonder of its day. In 1934, he led ten B-10s on a 8,290 mile flight from Washington, D.C. to Fairbanks, Alaska and back. Although Air Corps B-10s and B-12s were replaced by B-17s and B-18s in the late 1930s, China and the Netherlands flew export versions in combat against Japan.

Span: 70 ft. 6 in.
Length: 44 ft. 9 in.
Height: 15 ft. 5 in.
Weight: 14,700 lbs. loaded
Armament: Three .30-cal. machine guns, 2,200 lbs. of bombs
Engine: Two Wright R-1820's of 775 hp. each
Cost: $55,000

Maximum speed: 215 mph.
Cruising speed: 183 mph.
Range: 1,370 miles

Service Ceiling: 24,000 ft.
