Percival Mew Gull

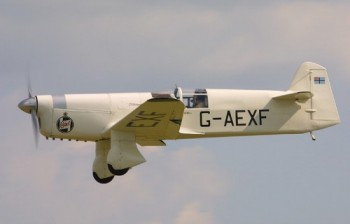

In all, six Percival P6 Mew Gull aircraft were produced. Of these, only one - G-AEXF - survives, and that has been rebuilt twice - once in 1978 to it's original factory specifications, and more recently, to its Cape Records configuration. John Cull - himself a former Kings Cup winner and for many years one of Britain's top racing pilots, is also in the process of building a replica of XF.

The original Mew Gull was the first civil aircraft to exceed a speed of 200 miles per hour. Later versions introduced steady improvements, and the fastest speed recorded by G-AEXF in its 1938 Kings Cup configuration was in excess of 270 mph. At sea level, it was faster than a Hawker Hurricane.

One of the entrants in the 1936 Schlesinger Race from Portsmouth to Johannesburg was Major Allister Miller, regarded by many as the father of civil aviation in South Africa. Major Miller was unfortunately forced to abandon the race in Belgrade, and his aircraft, a Mew Gull named The Golden City and having the registration ZS-AHM, was returned to England where it was subsequently bought by Bill Humble. Humble was however about to get married, and soon had second thoughts - under the circumstances - regarding the suitability of the aircraft. He therefore accepted an offer to swap it for a Leopard Moth owned by Alex Henshaw, and the Mew Gull was re-registered in Henshaw's name as G-AEXF. Thus, XF had a close association with South Africa even before the flight which made it famous.

The aircraft underwent considerable modification for the King's Cup race of 1938, which Alex Henshaw won at a record speed of 236.25 mph.

Following this success, XF was further modified for the Cape Records flight. These modifications included such things as increased fuel capacity (87 imperial gallons), modified instrumentation, and a retractable navigation light mounted just behind the cockpit canopy. The ARB were unwilling to issue a certificate of airworthiness before a second navigation light was fitted underneath the aircraft. Henshaw pointed out that since he would be the only person flying at night over Central Africa, this would serve no purpose other than to slow the aircraft down by several miles per hour, and the issue was not raised again.

Essex Aero

Much of the customization for both for the 1938 King's Cup and for the Cape Records attempt was carried out by a small aero engineering company Essex Aero Ltd, based at Gravesend, London and run by Jack Cross. Alex Henshaw gives Cross much of the credit for the outstanding performance and reliability displayed by the Mew Gull in such diversely demanding roles as King's Cup racer and Cape Records challenger. Jack Cross was also involved in the 1978 restoration of G-AEXF to her factory configuration.

Alex Henshaw, Jack Cross and restored Mew Gull, 1978 (From The Flight of the Mew Gull)

Panel and Instrumentation

Instrumentation was extensively modified for the Cape Records attempt. There was no turn-and-bank indicator, but instead a very stable gyro compass, which Alex Henshaw regards as critical to the success of the flight. The was also a large Huson P5 magnetic compass mounted on a bracket just in front of the pilot, and a chronometer with three stopwatches for dead reckoning.

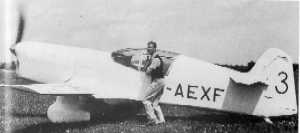

Alex Henshaw taxiing the Mew Gull

The Mew Gull was not an ideal aircraft for a long-distance record flight. The cockpit was extremely cramped, being only about two feet wide, and just high enough to clear the pilot's head. Additional fuel tanks were fitted to extend the range to over 1200 miles, and these when full, shifted the centre of gravity so far back that a special certificate of airworthiness had to be issued, which lapsed upon completion of the flight. The view forward was so poor on the ground that Henshaw devised a system of taxiing which involved walking beside the aircraft with the canopy open and his hand on the throttle! This feature almost certainly contributed to the tragic death of Campbell Black, who was killed when his Mew Gull was involved in a collision with a Hawker Hart while taxiing on the ground.

The Mew Gull panel today. Note that the turn and bank indicator was not present in the original Cape Records configuration, nor was the panel-mounted magnetic compass, which replaces the original gyro compass. Note also the Huson P5 magnetic compass mounted on a bracket attached to the right hand side of the cockpit.
