Boeing Vertol 107


Developed as the YHC-14 in 1958 due an US army 's request for a medium-size turbine powered helicopter, was soon cancelled on behalf of the biggest CH-47 Chinook of the same company.

However, the US marines test a modified version, the Model 107M , that was soon accepted as the HRB-1 and with the normalization of 1961 became in the CH-46

A real workhorse of the US navy and marines since 1965, is primarily used to provide all-weather day or night assault transport of combat troops, supplies and equipment.

It was intended to be replaced by the Bell/Boeing V-22 Osprey.

The model 107 was built with license in Japan by Kawasaki as the KV-107 and is also used in Canada as CH-113 Labrador / Voyageur and Sweden as HKP-4

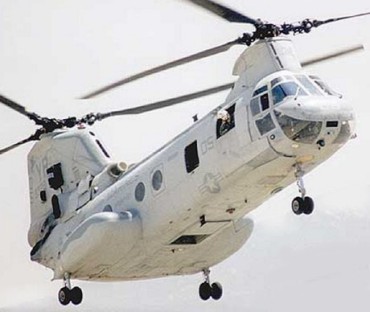

US marine's CH-46 assault helo

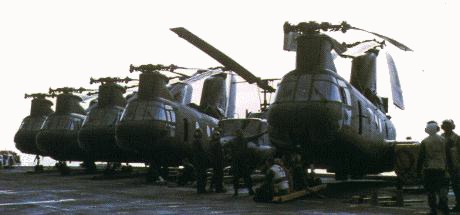

Note the size of the Bell 212 (UH-1N) between the Sea Knights

Functions: Assault / Cargo / SAR
First Flight : April 22, 1958
Crew / Load: 2 up to 28 (Depending the mission)

CH-46D :
Engines: 2 * 1400 shp General Electric T58-GE-10
Speed: 248 km/h -- Max: 260
Range: 380 km
Weight: Empty: 5827 kg -- Max: 10433
Rotor Span: 15.54 m
Length: 25.40 m
Height: 5.09 m
Disc Area: 379.56 m2
Cabin Section: 7.5 m(24 feet) long, 1.8 m (6 feet) wide, 1.8 m (6 feet) high
