Dassault Mirage V
Origin: |
France |
Type: |
day visual
fighter-bomber |
Max Speed: |
1,030 kt /
1,188 mph |
Max Range |
4,000 km /
2,485 miles |

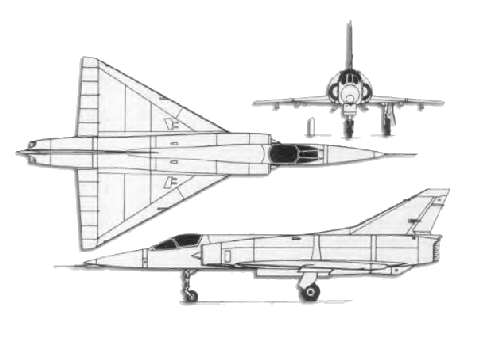

Dimensions: |
span 8.22 m /
26 ft 11.6 in
length 15.55 m / 51 ft 0.2 in
height 4.50 m / 14 ft 9 in |
Weight: |
empty 6600 kg
/ 14,550 lb
max. take-off 13700 kg /
30,203 lb |
Powerplant: |
one 6200-kg
(13,668-lb) afterburning thrust SNECMA Afar 9C turbojet |
Armament: |
two 30-mm DEFA
552A cannon with 125 rounds per gun, plus provision for up to 4000 kg
(8,818 Ib) of disposable stores carried on seven external pylons for
various combinations of weapons and/or tanks, including Magic or
Sidewinder AAMs |
|
|
