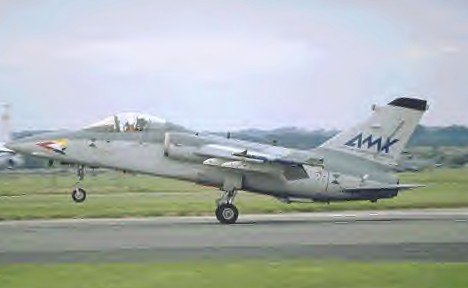

Embraer AMX

Origin:

Italy and Brazil

Type:

single-seat multi-role combat aircraft

Max Speed:

565 kt / 651 mph

Max Range

2,073 miles / 3,336 km

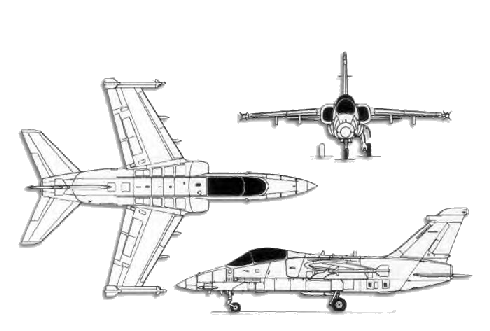

Dimensions:

span 8.874 m / 29 ft 1.5 in
length 13.23 m / 43 ft 5 in
height 4.55 m / 14 ft 11.25 in

Weight:

empty 6700 kg / 14,771 lb
max. take-off 13,000 kg /
28,660 lb

Powerplant:

one 11,030-lb (5003-kg) dry thrust Fiat/Piaggio/Alfa-Romeo (Rolls-Royce) Spey Mk 807 turbofan

Armament:

one 20-mm M61A1 Vulcan cannon or (Brazilian version) two 30 mm DEFA Cannon plus provision for up to 3800 kg (8,377 Ib) of stores carried on five external hardpoints (one twin unit under the fuselage and four under the wings) together with two wingtip rails for Sidewinder or similar AAMs

Operators:

Brazil, Italy, Venezuela
