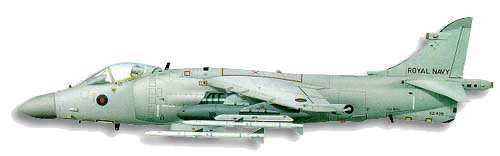

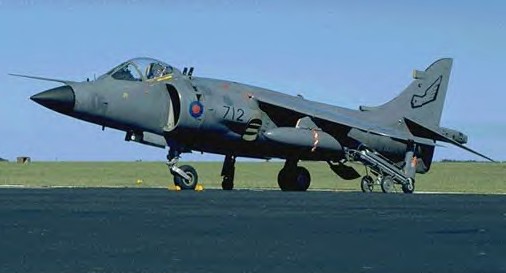

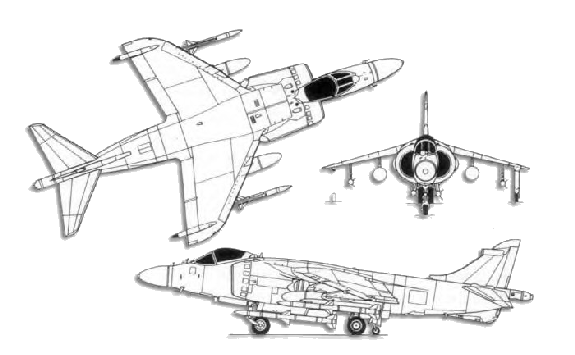

British Aerospace Sea Harrier


Origin: UK
Type: shipborne multi-role combat aircraft
Max Speed: 639 kt / 736 mph
Max Range 185 km / 115 miles
Dimensions: span 7.70 m / 25ft 3 in
length 14.17 m / 46 ft 6 in
height 3.71 m / 12 ft 2 in
Weight: empty 5,942 kg / 13,100 lb
maximum take-off 11,884 kg / 26,200 lb
Powerplant: one 9752-kg (21,500-lb) dry thrust Rolls Royce Pegasus Mk 106 vectored-thrust turbofan
Armament: two 30-mm Aden cannon, plus provision for 3629 kg (8,000 Ib) of stores carried on five pylons and including four AIM-120 AMRAAM or two AMRAAM and four Sidewinder AAMs, two Harpoon or Sea Eagle anti-ship missiles and a number of other advanced weapons to complement the types carried by the Sea Harrier FRS.Mk 1
