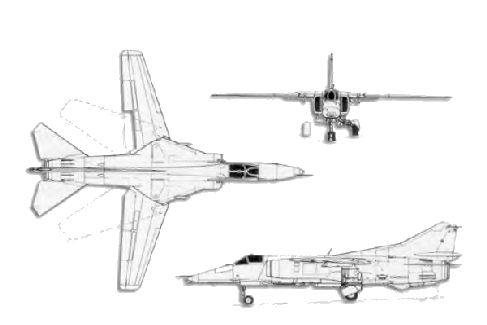

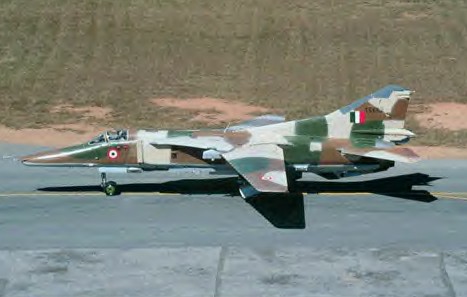

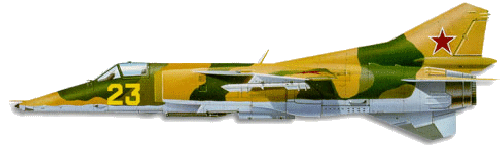

MiG-27 Flogger
Origin: |
USSR |
Type: |
single-seat
ground-attack aircraft |
Max Speed: |
1,017 kt /
1,170 mph |
Max Range |
1,080 km / 670
miles |
Dimensions: |
span 13.965 m
/ 45.9 ft
length 16.7 m / 54.8 ft
height 4.82 m / 14 ft 9.2 in |
Weight: |
max. take-off
18,850 kg /
41.556 lb |
Powerplant: |
one Soyuz (Tumanski)
R-29B-300 turbojet rated at 77 kN (17,310 Ib) or 110kN (24,728 Ib)
with afterburner |
Armament: |
one internal
GSh-23L 23-mm twin-barrel cannon in semi-conformal fuselage gondola,
plus up to 3000 kg of ordnance, including UV-32-57 (57 mm) and S-8 (80
mm) rocket pods, KMG-U bomblet dispensers, free-fall bombs up to 500
kg, UPK-23-250 cannon pods, AS-7 Kerry ASMs and podded reconnaissance
sensors. |
|
|
